Name: SUP-P260-B Water level sensor
Brand: Asmik
SKU: 00073
Rating: 4.8 (3020 reviews)

SUP-P260-B Water level sensor

SUP-P260-B series water level sensor are completely sealed for submersion in liquid, can be used to measure water level, well depth, groundwater leverl and so on type, common accuracy is 0.5%FS,with voltage or 4-20mA output signals

Characteristics

Range: 0 ~ 100m

Resolution: 0.5% F.S

Output signal: 4~20mA; 0~10V; 0~5V

Power supply: 24VDC; 12VDC

Tel.: +86 15868103947 (WhatApp)

Email : info@supmea.com

Specification

Specification

Product	Water level sensor
Model	SUP-P260-B
Measuring range	0 ~ 1m; 0 ~ 3m; 0 ~ 5m; 0 ~ 10m （Max 100m）
Display resolution	0.5%
Ambient temperature	-10 ~ 85 ℃
Output signal	4-20mA, 0-5V, 0-10V
Pressure overload	150%FS
Power supply	24VDC; 12VDC
Medium temperature	-40 ℃ ~ 60 ℃
Overall material	Core: 316L; Shell: 304 material

Introduction

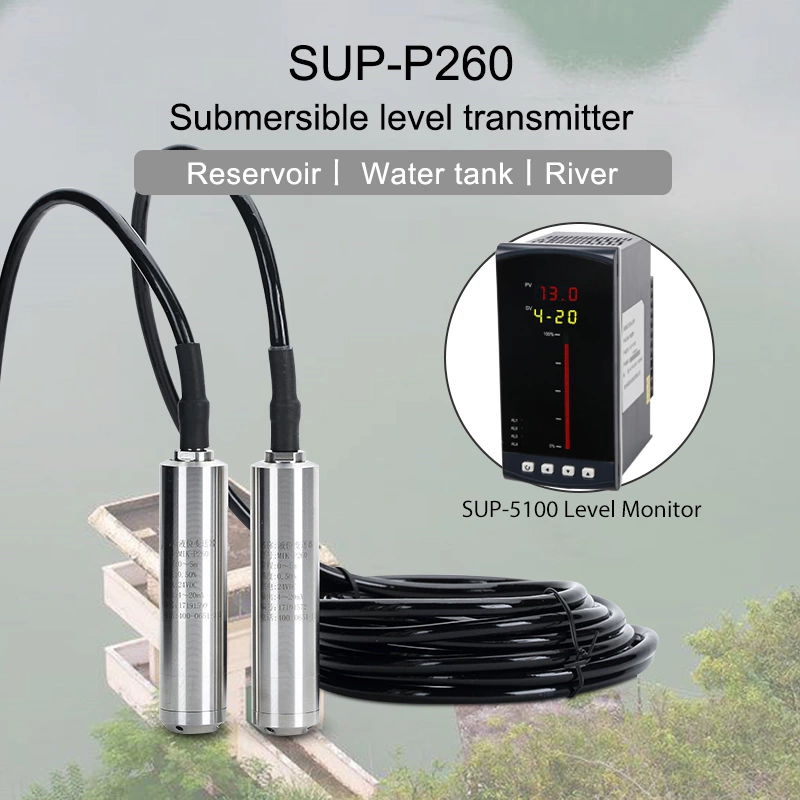

Asmik level transmitter

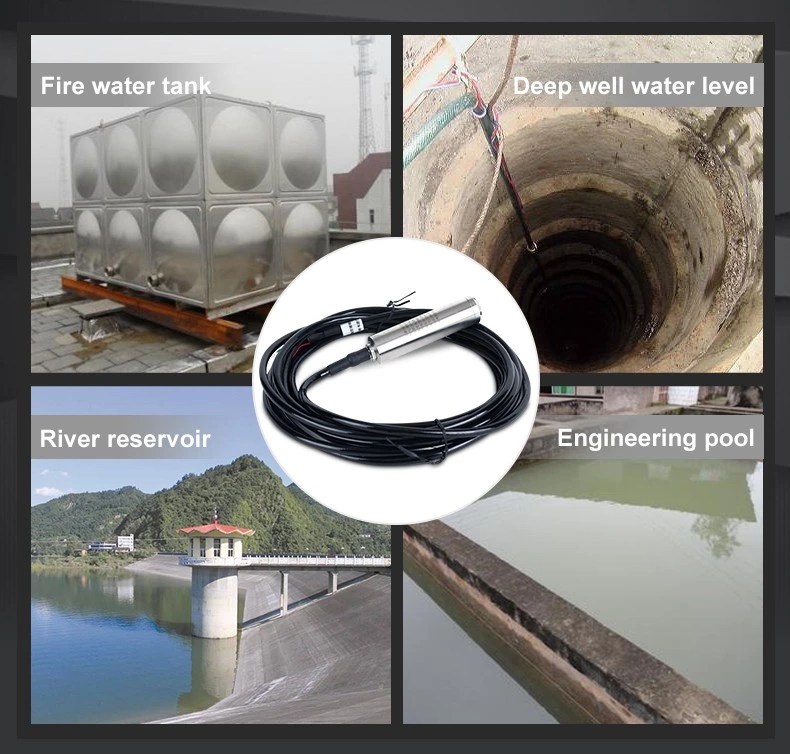

Application

level meter application

Description

Asmik level meter

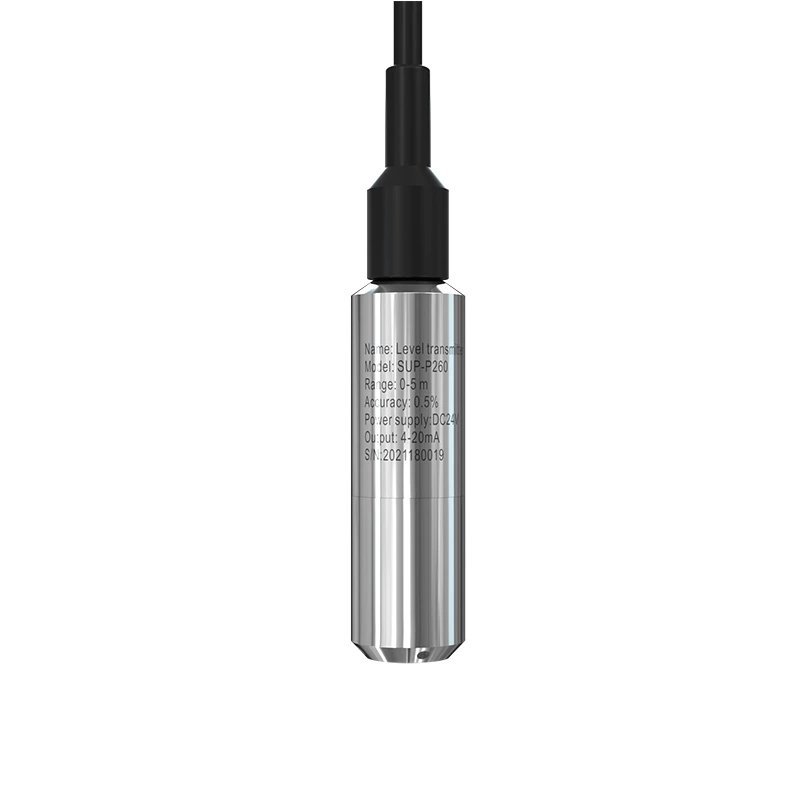

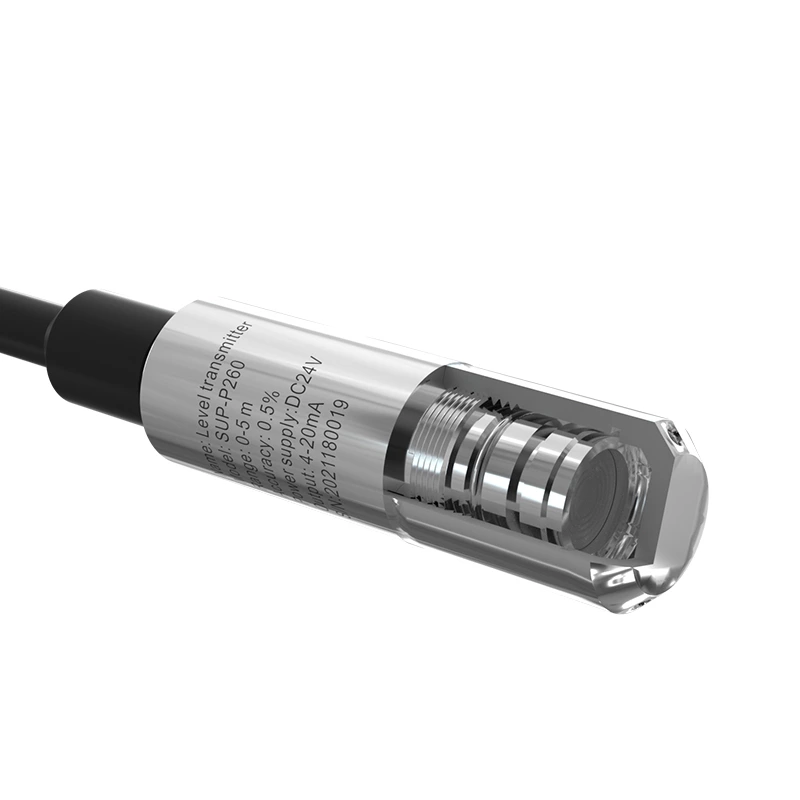

SUP-P260-B Water level sensor

Features

Benefits

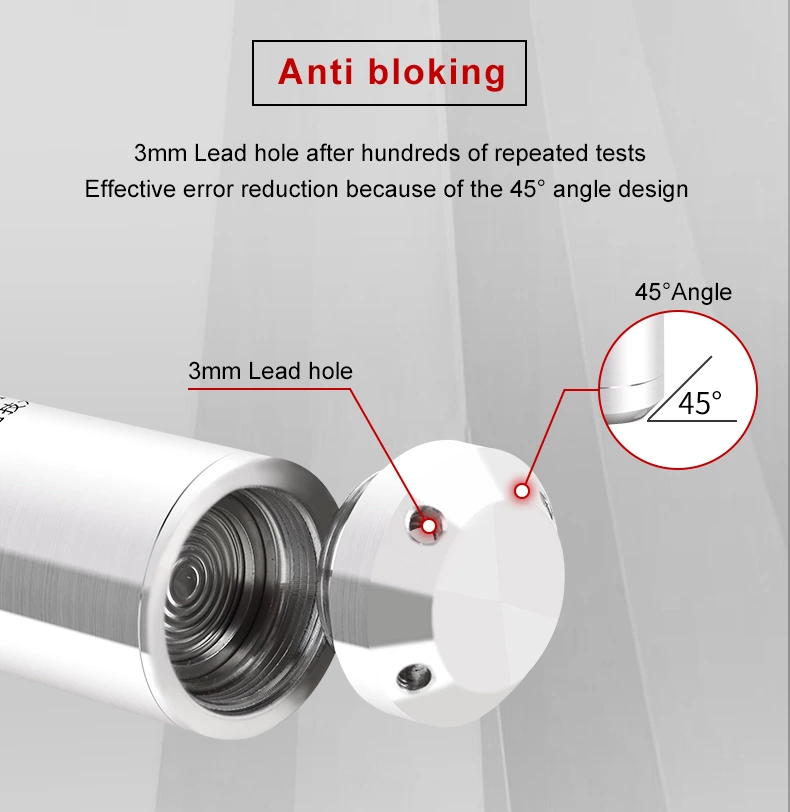

Not easily clogged and resistant to damage from floating solids
Ensures reliability and long service life even in harsh environments
Utilizes a 1/2-inch NPT threaded connection for easy installation in pipes/ducts
The diaphragm is protected from physical damage and turbulence
Added weight helps secure the emitter in place
Excellent chemical compatibility for a wide range of applications
