Name: SUP-P260-M3 Submersible level meter
Brand: Asmik
SKU: 00240
Rating: 4.8 (7366 reviews)

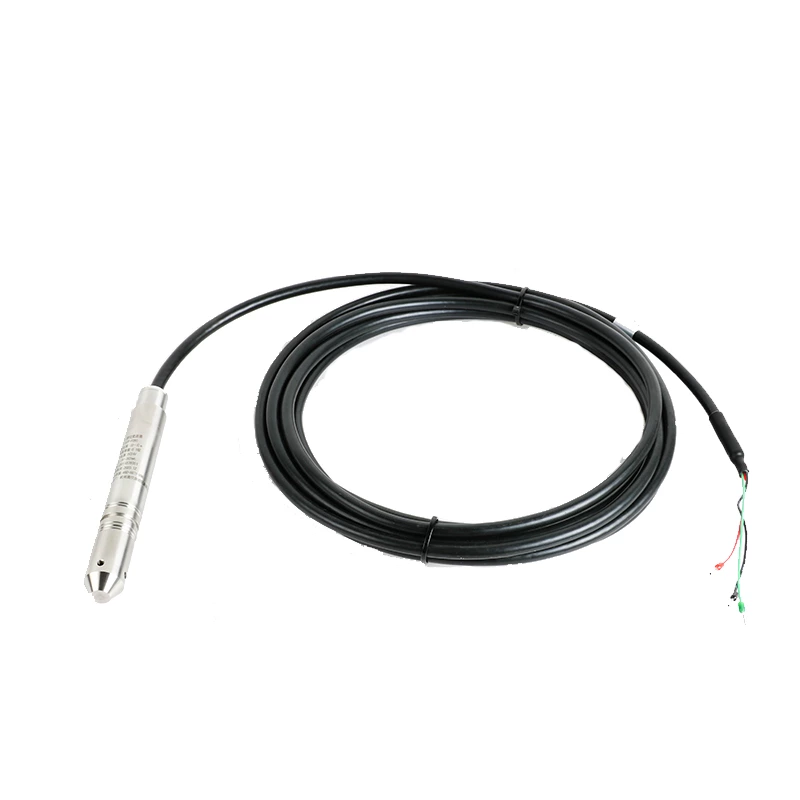

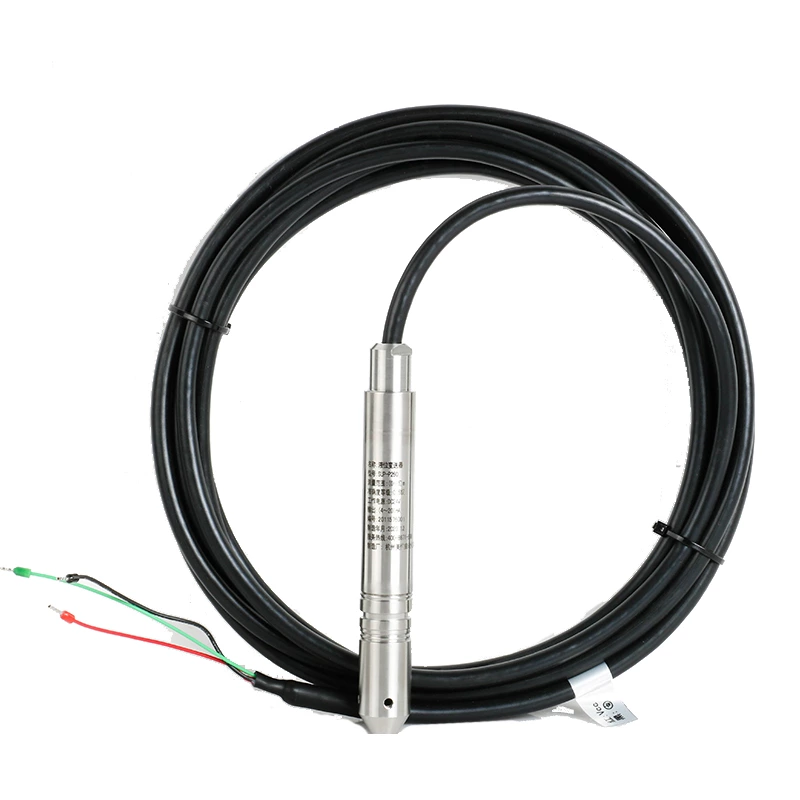

SUP-P260-M3 Submersible level meter

SUP-P260-M3 Submersible level meter are completely sealed for submersion in liquid, can be used to measure water level, well depth, ground water level and so on, common accuracy is 0.5%FS

Full-welded structure, removable protective cap, small diameter Φ19mm.

Characteristics

Range: 0 ~ 5m
Resolution: 0.5% F.S
Output signal: 4~20mA
Power supply: 24VDC

Specification

Specification

Product	Water level sensor
Model	SUP-P260-M3
Measuring range	0m～0.5m…300m
Display resolution	0.5%
Ambient temperature	-10 ~ 85 ℃
Output signal	4-20mA, 0-5V, 0-10V
Pressure overload	150%FS
Power supply	24VDC; 12VDC
Medium temperature	（-20～65）℃
Overall material	Core: 316L; Shell: 304 material

Introduction

Water level sensor

Application

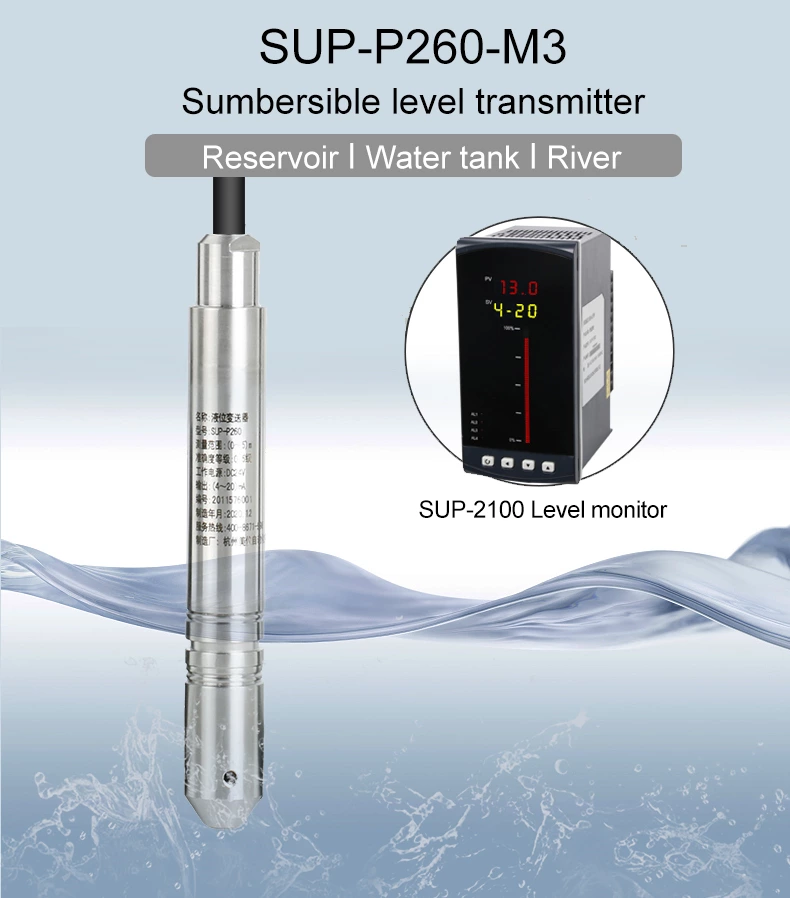

SUP-P260-M3 Submersible level transmitter application

Description

Water level sensor

Features

Benefits

Not easily clogged and resistant to damage from floating solids
Ensures reliability and long service life even in harsh environments
Utilizes a 1/2-inch NPT threaded connection for easy installation in pipes/ducts
The diaphragm is protected from physical damage and turbulence
Added weight helps secure the emitter in place
Excellent chemical compatibility for a wide range of applications
