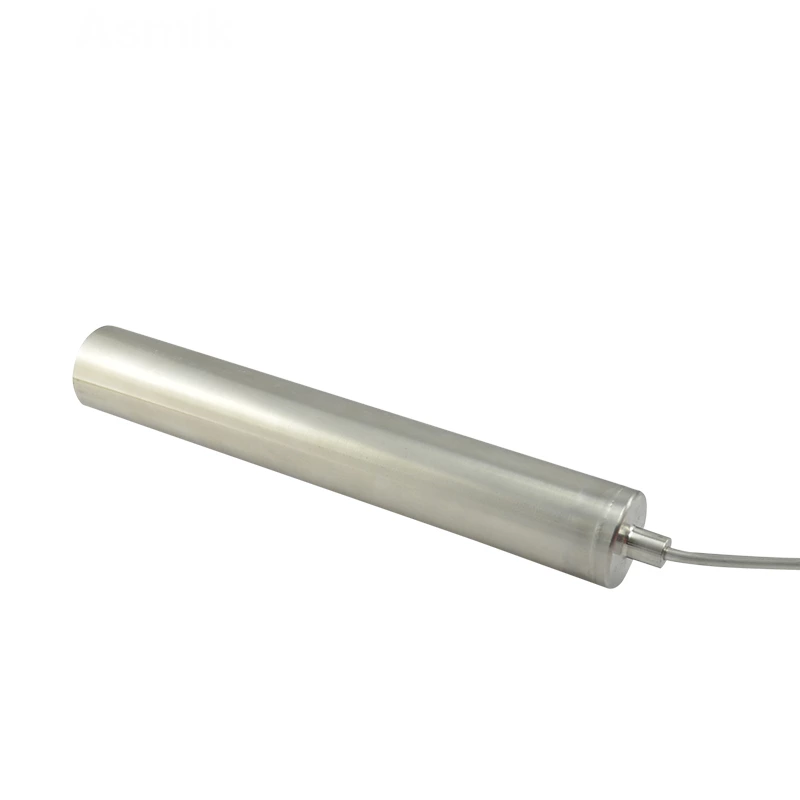

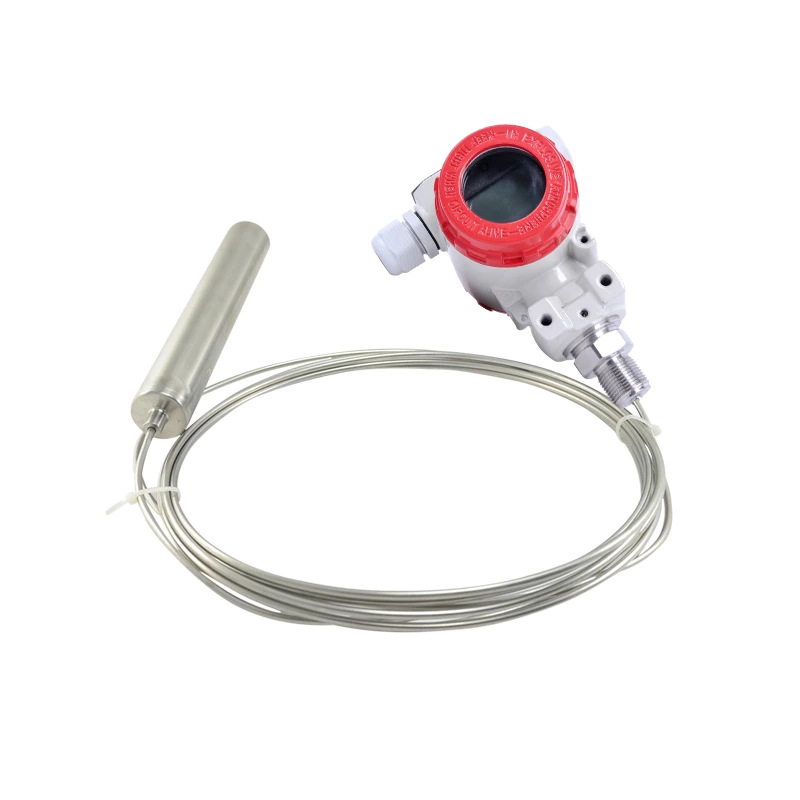

SUP-P260G series water level meter are completely sealed for submersion in liquid, can be used to measure water level, well depth, groundwater leverl and so on, common accracy is 0.5%FS,with voltage or 4-20mA output signals
Compact shape, accurate measurement. According to fluid mechanics, the use of cylindrical arc shape, the effective media to the impact of the probe down to reduce the impact of probe shaking on the measurement stability
Multiple waterproof and dustproof.
The first protective layer: 316L sensor diaphragm, seamless connection, to ensure that the lead and the sensor probe waterproof;
Second protective layer: pressure pipe design, to ensure that the protective layer and the lead paste clothes, waterproof, dustproof;
Third protective layer: 316L material, seamless connection, to ensure that the lead and the shield seamless connection, confined, nondestructive design;
Fourth protective layer: high-quality, sophisticated shielding layer, sophisticated waterproof technology to ensure that no liquid leak detection;
Fifth protective layer: 12mm bold, high-quality waterproof line, the service life of up to 5 years, long-term immersion in the water is not corrosive, durable, not damaged.
| Product | Level transmitter |
| Model | SUP-P260G |
| Measure range | 0m~ 1m···10m |
| Indication resolution | 0.5% |
| Conpensated temperature | 0℃~60℃ |
| Operation temperature | -20℃~85℃ |
| Medium temperature | -40℃～200℃ |
| Storage temperature | -40℃~125℃ |
| Output signal | 4-20mA;0~5V;0~10V |
| Pressure overload | 300%FS |
| Stability | ±0.2%FS/year |
| Response time | ≤10ms(rise to 90%FS) |
| ingress protection | IP68 |
| Power supply | 4-20mA(18-36V); 4-20mA with display(12~36V) 0-5V,0-10V(12-32V) |
