Specification
- Specification

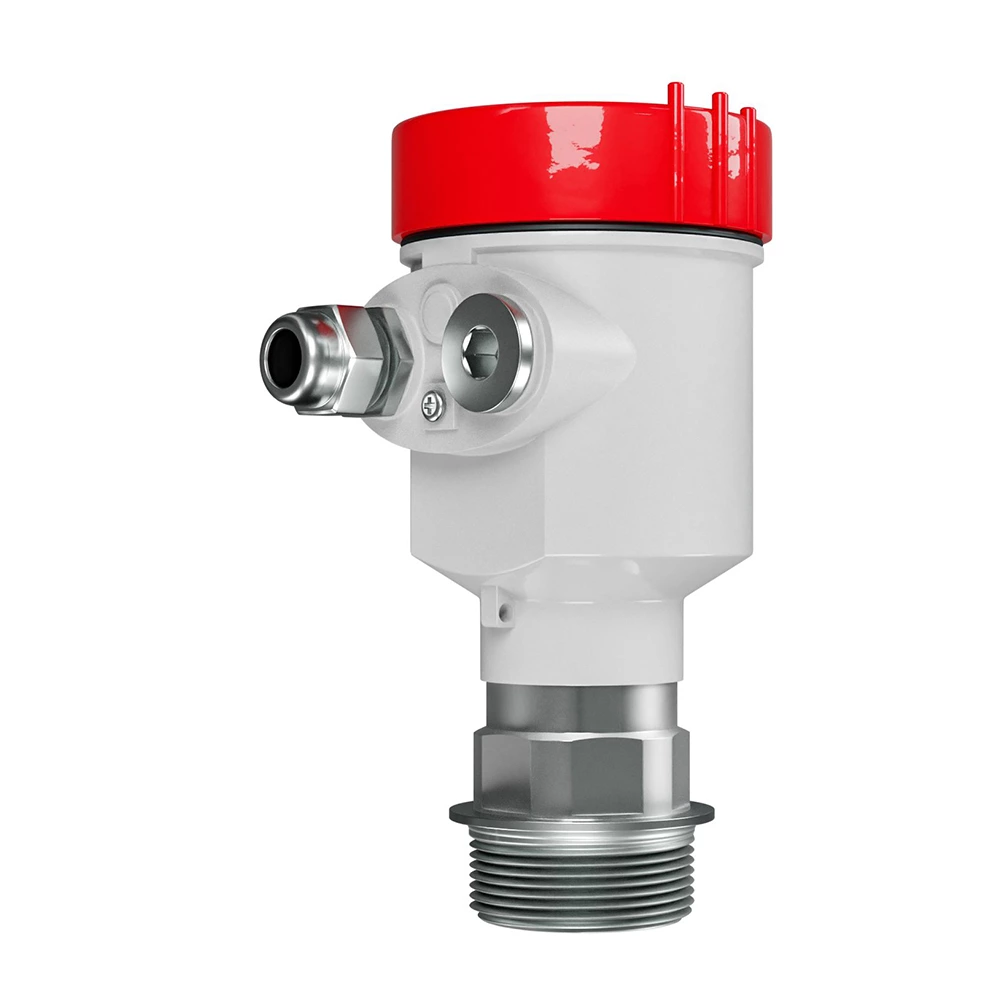

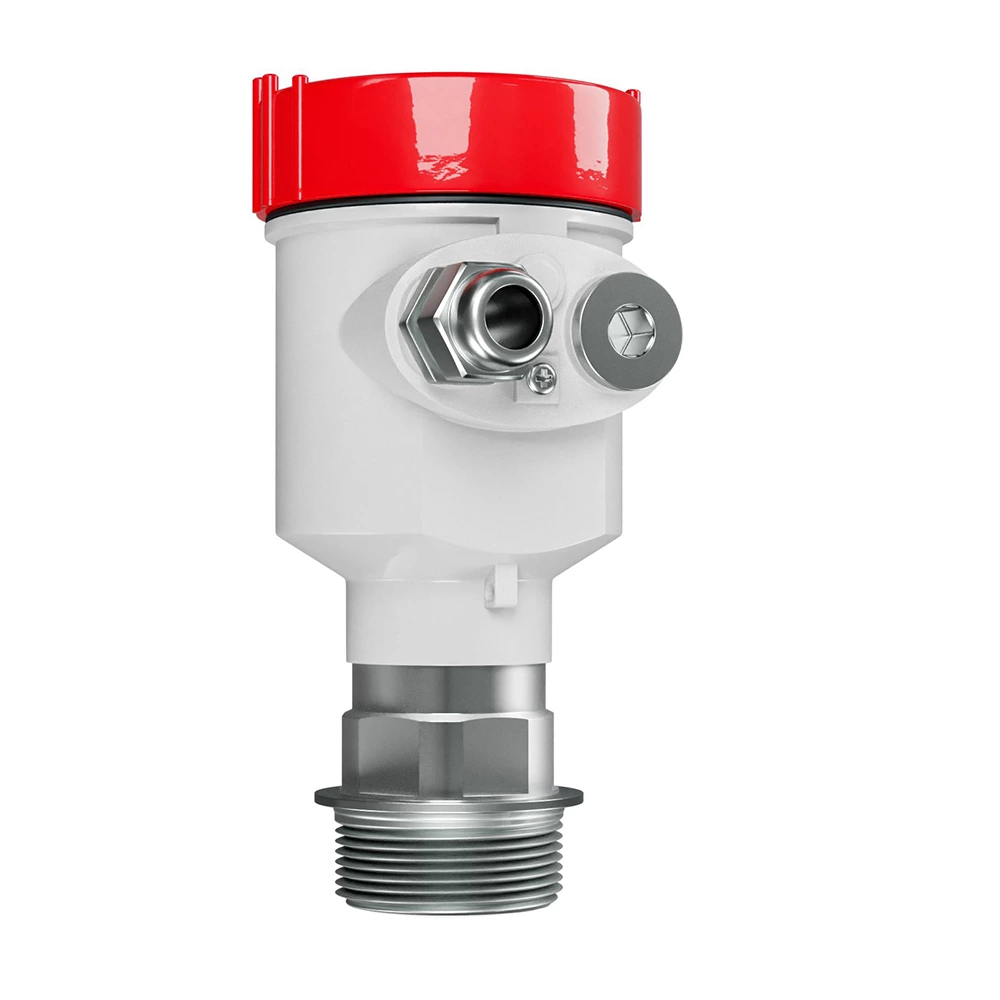

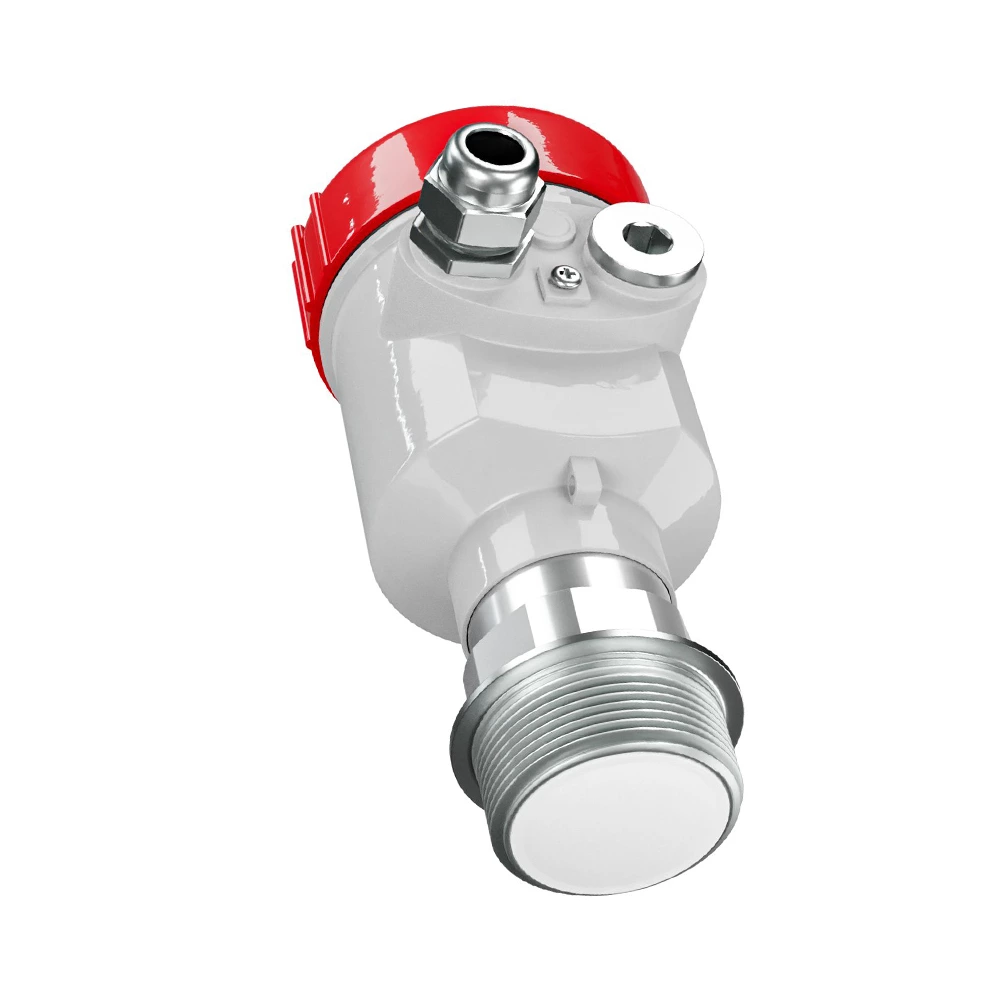

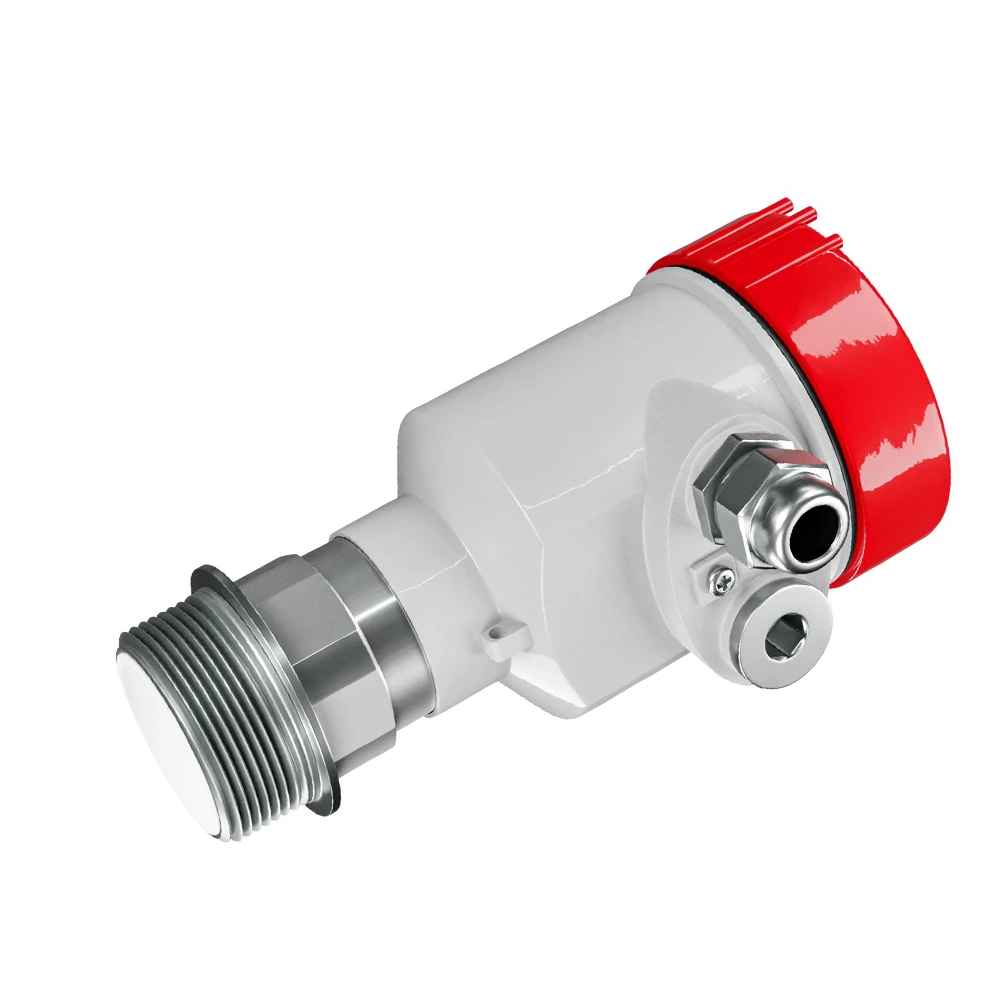

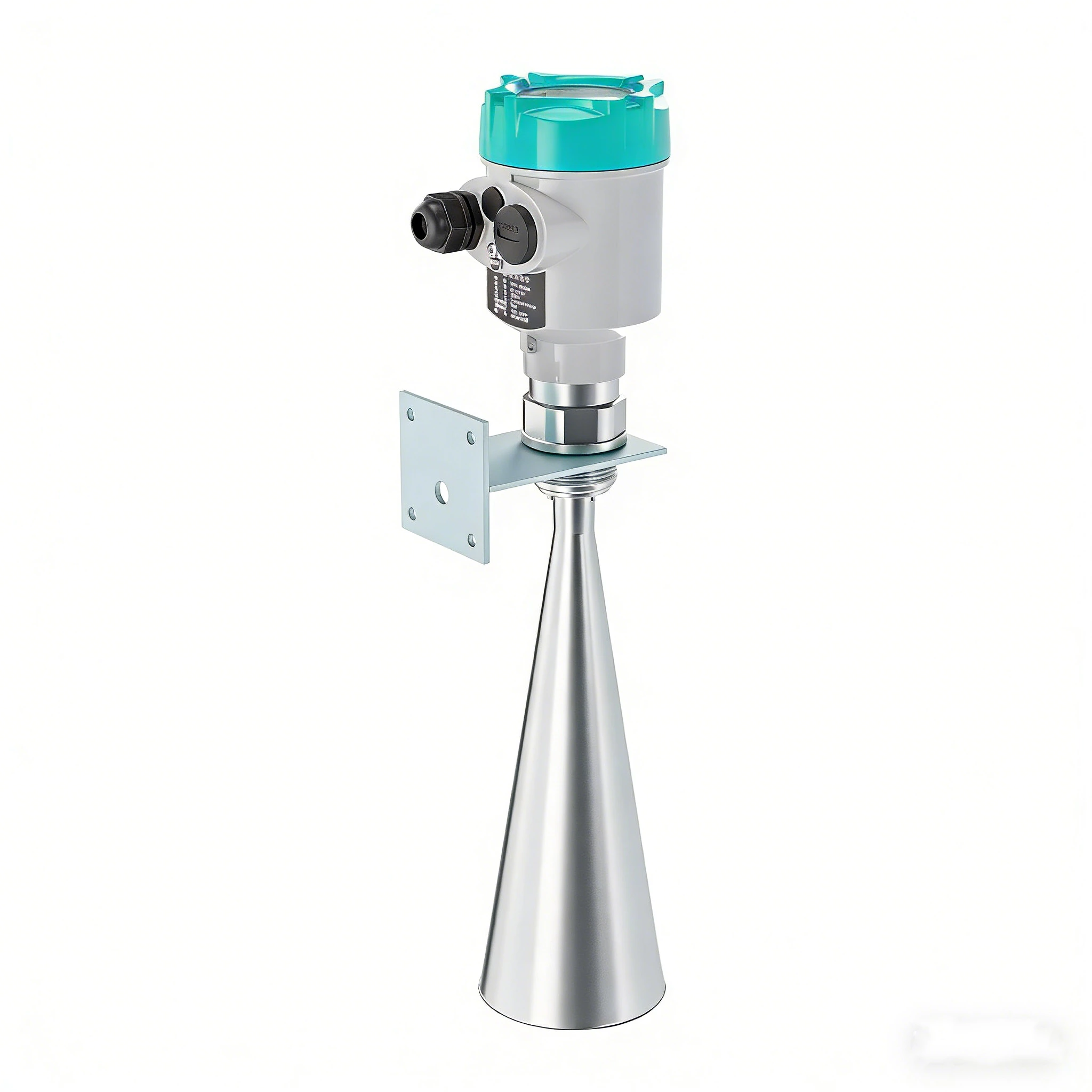

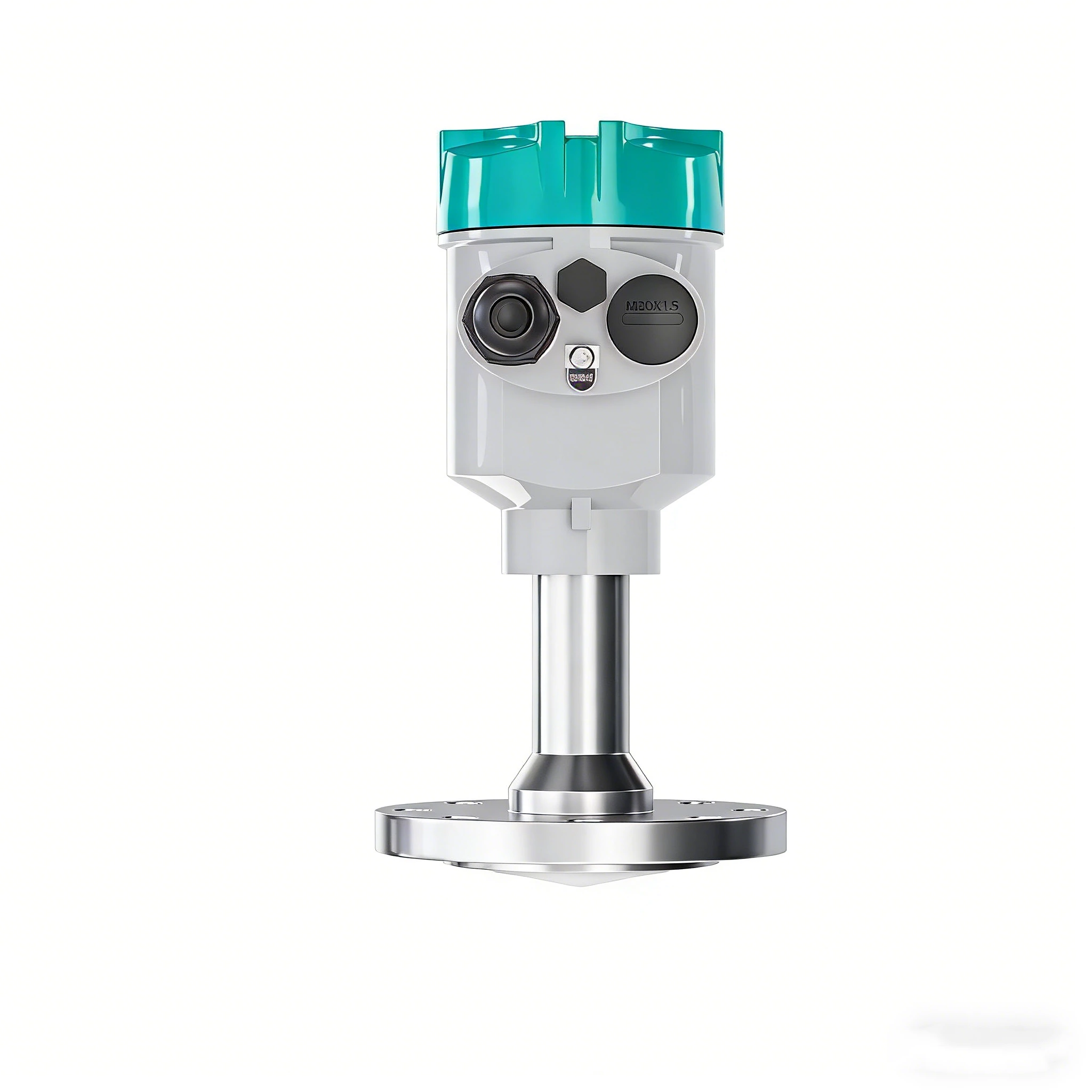

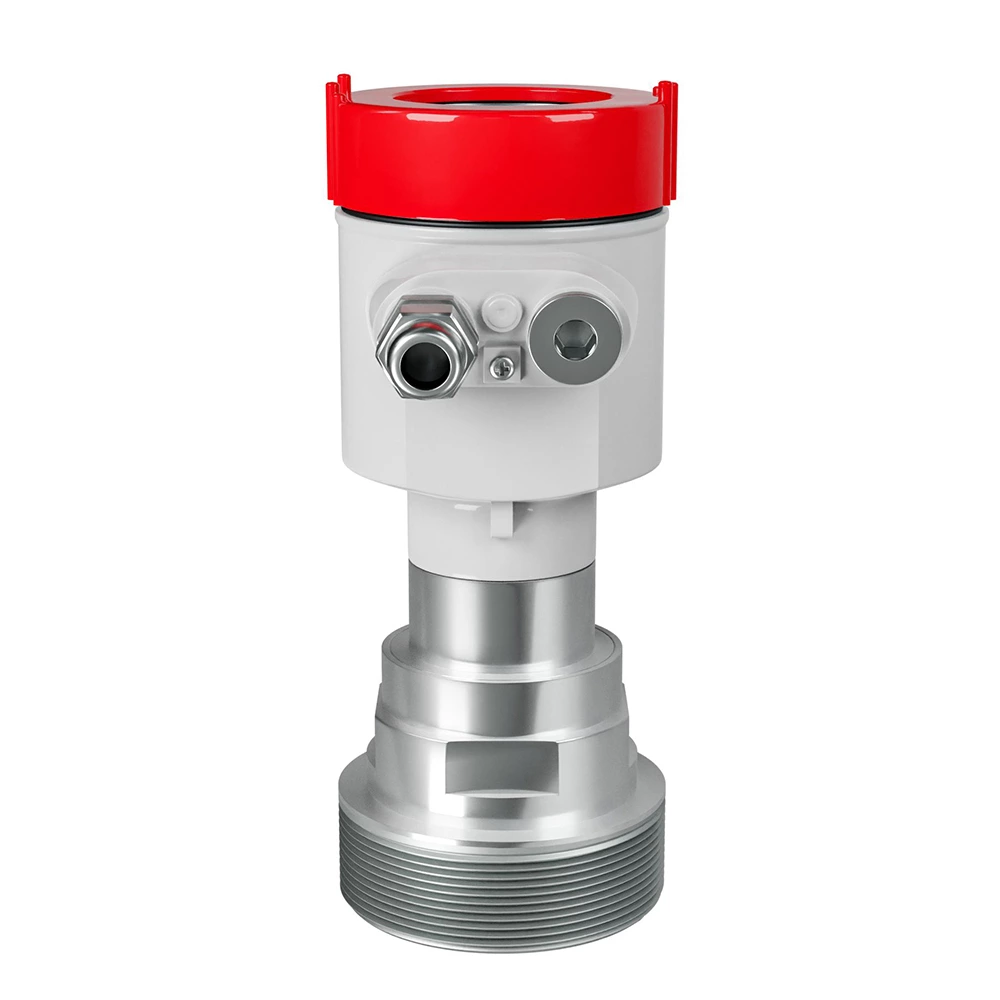

| Product | Radar level meter |
| Model | SUP-RD1000 |
| Measure range | Liquid leve: 5m,10m,15m,20m,30m Material level: 5m,10m,15m,20m |

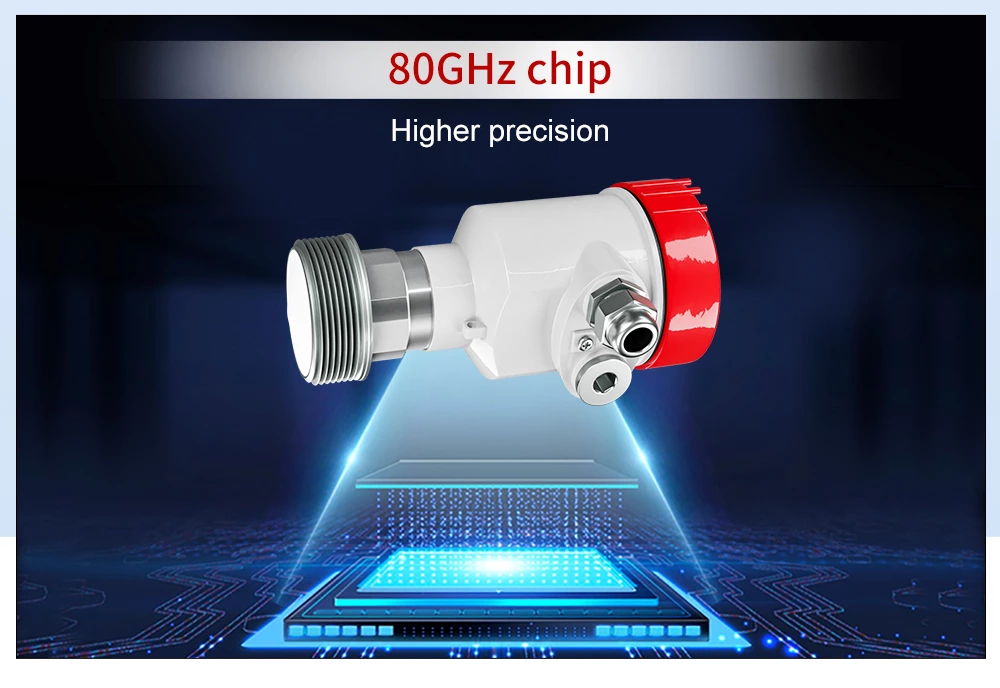

| Frequency range | 80GHz |
| Humidity | 0% -95% RH |
| Temperature resistance | -30℃~150℃ |
| Accuracy | 0.1%FS |
| Display | 128*64 LCD |
| Electrical interface | M20*1.5(F) |
| Signal output | 4-20mA |
| RS485/Modbus or HART | |
| Power supply | DC24V (22V~30V) |
Description
Features
Benefits
- Extremely precise measurement and reading capabilities
- Can be used for data backup and recovery
- Adjustable analog output range
- Customizable serial port data format
- Non-contact, maintenance-free measurement
