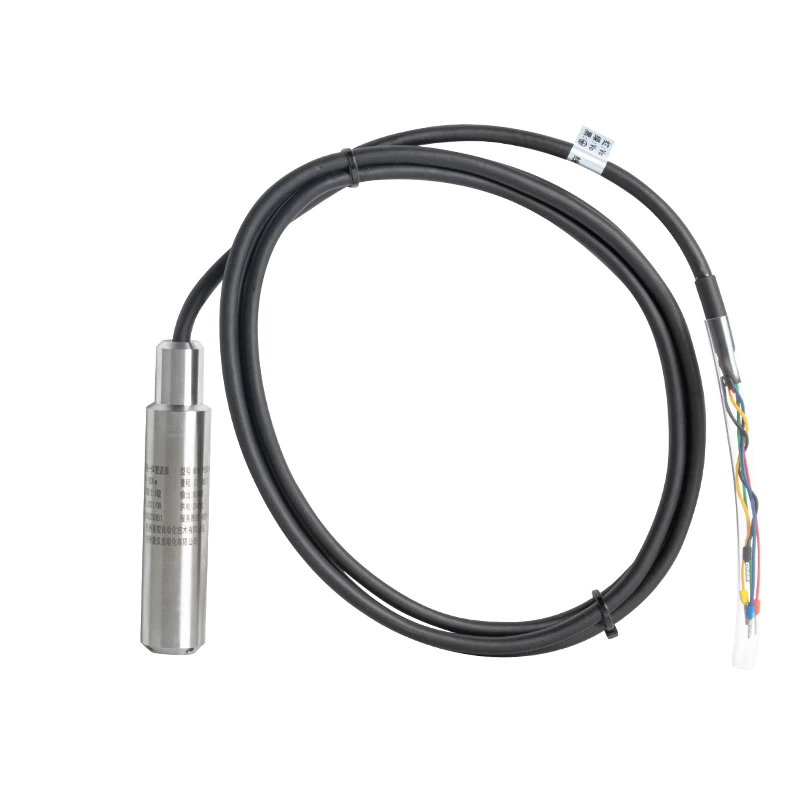

SUP-P260-M4 Submersible level and temperature meter

SUP-P260-M4 Submersible level and temperature meter are completely sealed for submersion in liquid, for continuous level and temperature measurement in water level, well depth, groundwater level and so on.

Characteristics

Range: Level: (0~100)m
Temperature: (0~50)℃
Accuracy: Temperature :1.5%FS
Level:0.5%FS
Output signal: RS485/4~20mA/0~5V/1~5V
Power supply: 12~0VDC

Specification

Specification

Product	Level and temperature meter
Model	SUP-P260-M4
Measuring range	Level: (0...100)m Temperature: (0...50)℃
Accuracy	Temperature: 1.5%FS Level: 0.5%FS
Compensation temperature	0...50℃
Output signal	RS485/4~20mA/0~5V/1~5V
Medium temperature	-20...65℃
Power supply	12...30VDC
Ingress Protection	IP68

Water level sensor

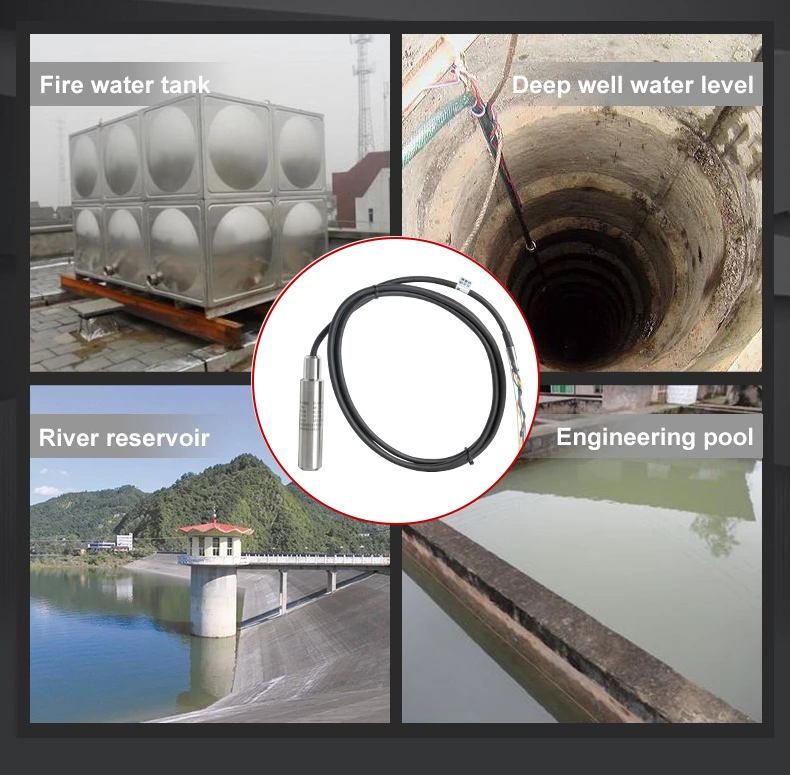

Application

SUP-P260-M4 Submersible level transmitter application

Description

level and temperature transmitter

water level and temp transmitter

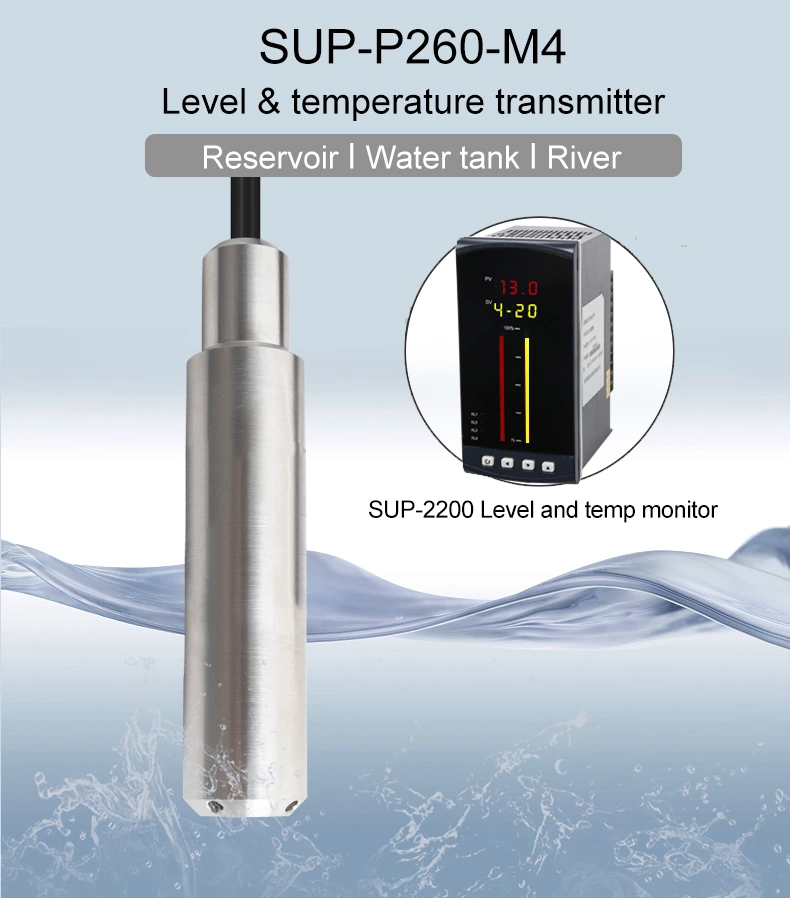

4Water level sensor

Features

Benefits

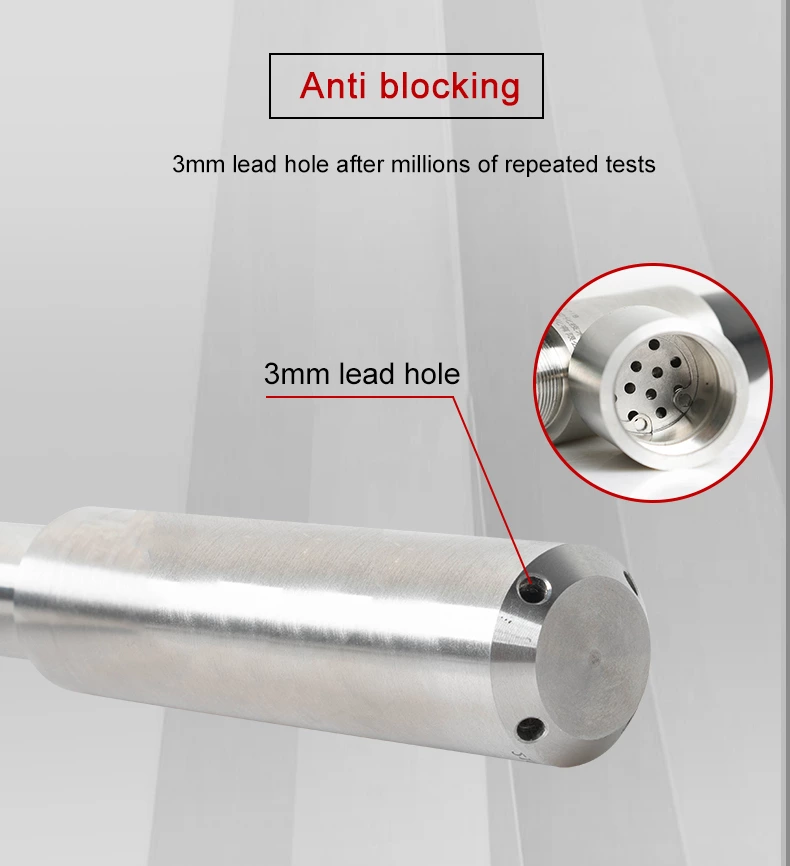

Not easily clogged and resistant to damage from floating solids
Ensures reliability and long service life even in harsh environments
Utilizes a 1/2-inch NPT threaded connection for easy installation in pipes/ducts

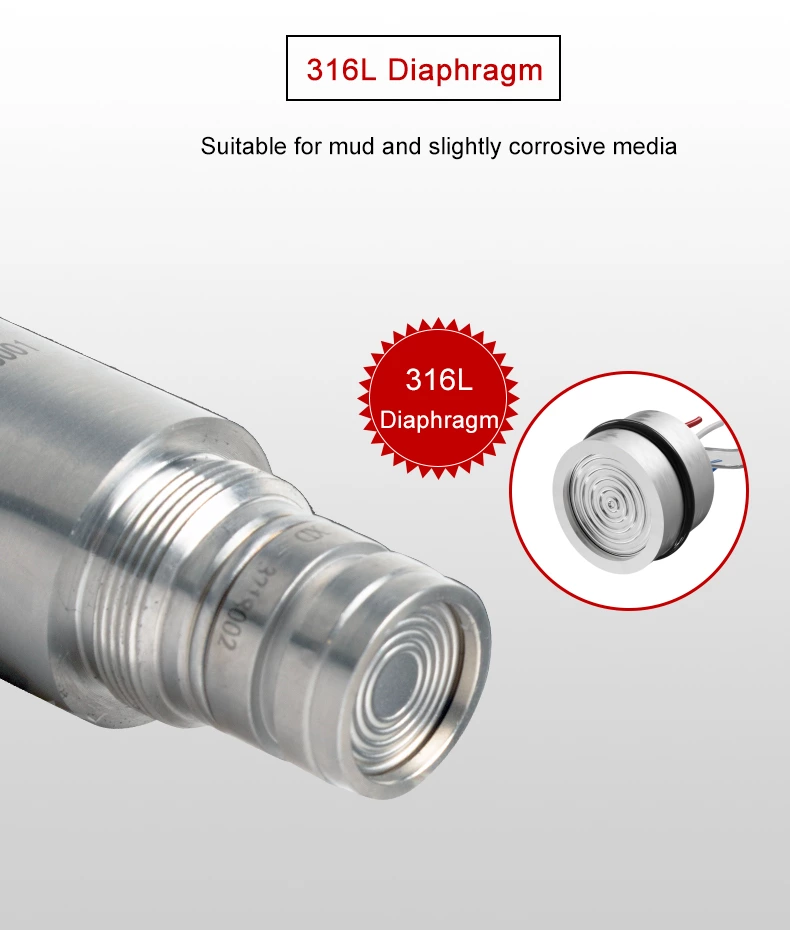

The diaphragm is protected from physical damage and turbulence
Added weight helps secure the emitter in place
Excellent chemical compatibility for a wide range of applications
