Specification

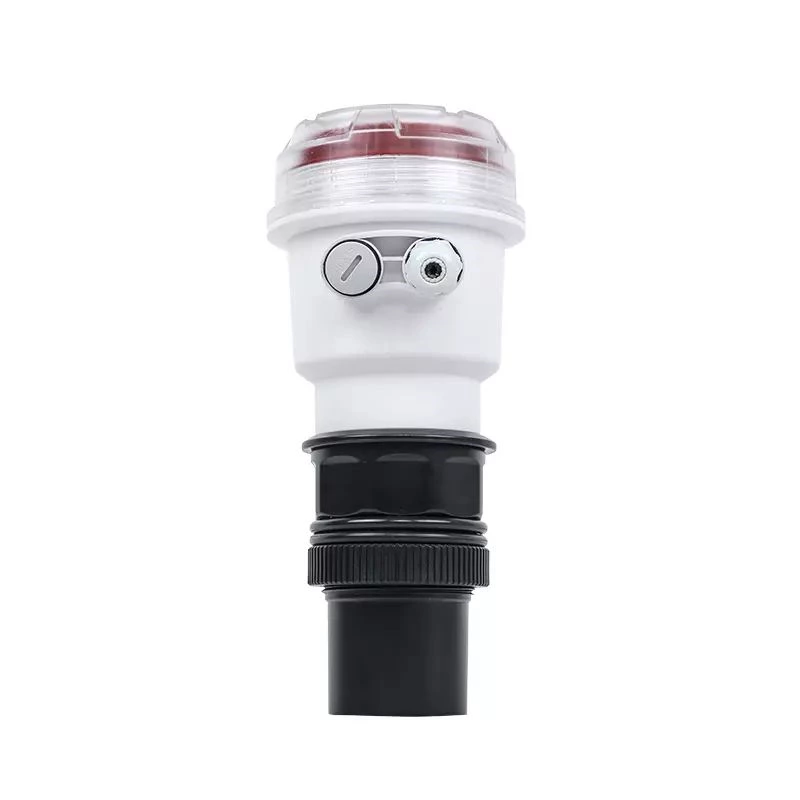

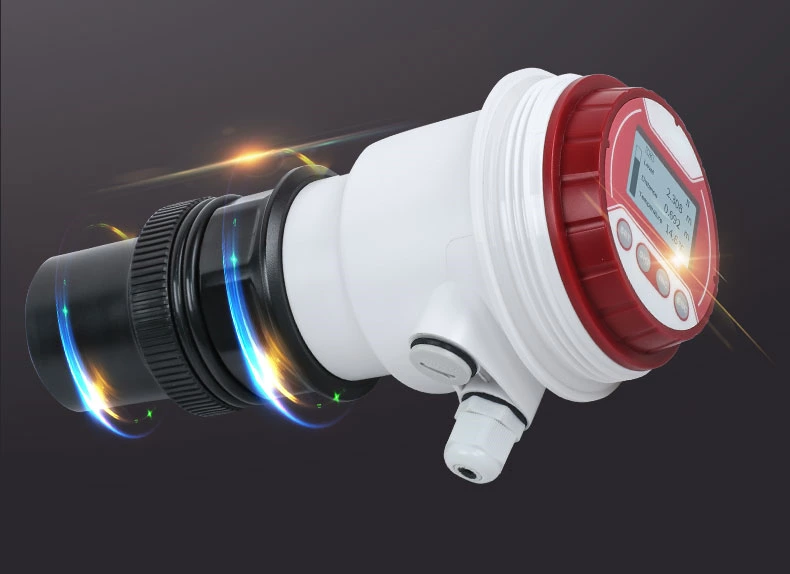

SUP-MP-C Ultrasonic level transmitter is a non-contact, high reliability, cost-effective, easy to install and maintain liquid level/material level measure instrument. It can meet most liquid level/level measurement requirements without contacting the measured medium. It is a new generation of ultrasonic level gauge with completely independent property rights of our company.
| Product |
Ultrasonic level transmitter |
| Model |
SUP-MP-C |
| Measure range |
5, 10m, 15m (optional) |
| Blind zone |
≤0.4m (5m, 10m) ≤0.6m(15m) |

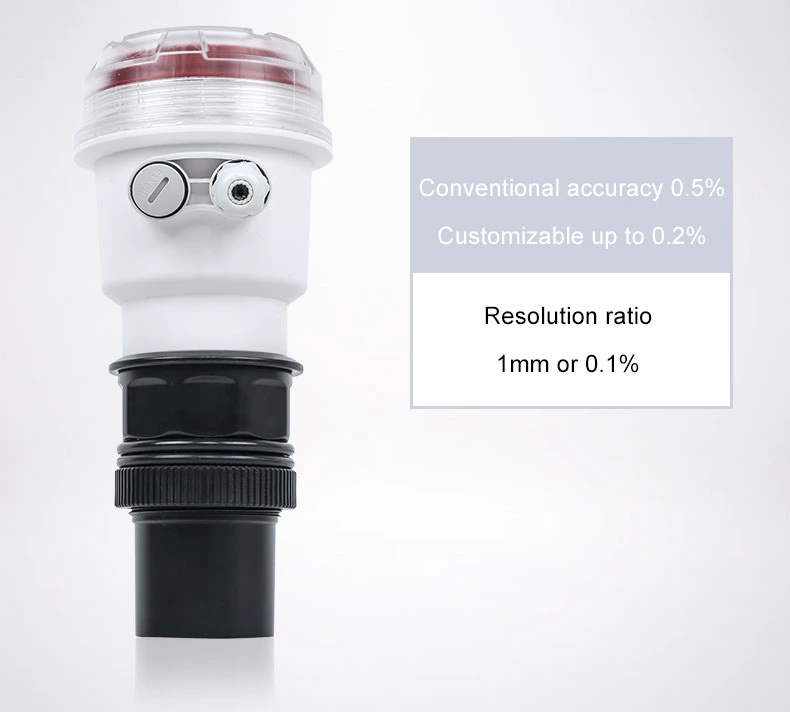

| Accuracy |
±0.3%FS, ±0.5%FS |

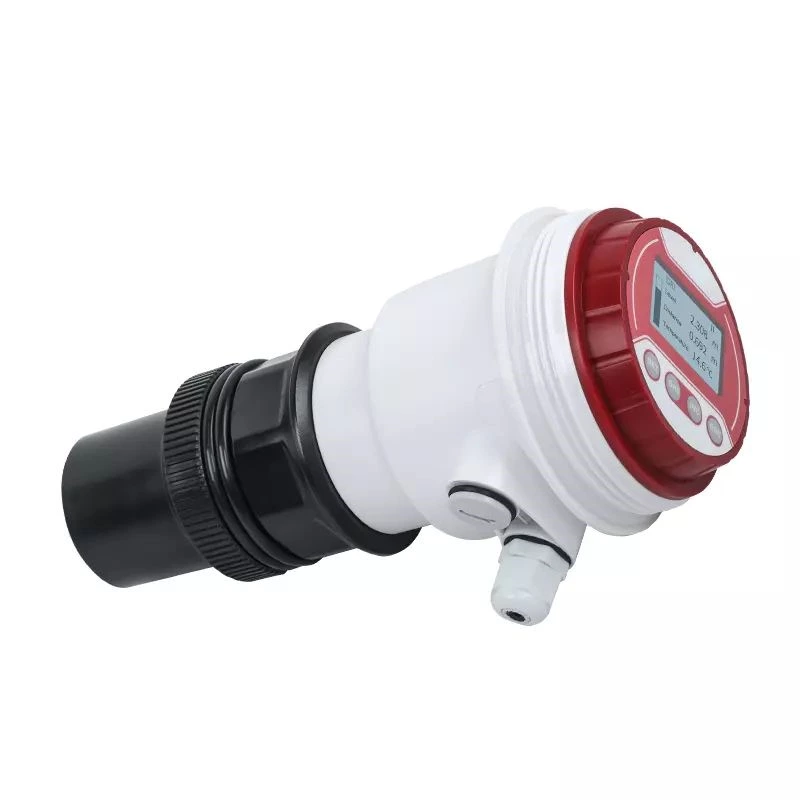

| Display |
Monochrome LCD with resolution of 128 * 64 |
| Output (optional) |
4-20mA RL>600Ω(standard) |
| RS485 |
| 2 relays |
| Measuringvariable |
Level/Distance |
| Power supply |
18-28 VDC |
| Temperature range |
Converter: -20-60 ℃
Sensor: -20-80 ℃ |
| Ingress protection |
Converter:IP65 Sensor:IP68 |
| Huminity range |
10%-85% RH (no condensation) |
| Installation |
Thread (Standard) |
| Communication |
RS485 |
| Alarm |
2 relays |
Backup and recovery parameter set
Free adjustment of the range of analog output
Custom serial port data format
Optional increment/difference distance measurement to measure air space or liquid level
1-15 transmitted pulse intensity depending on working conditions
