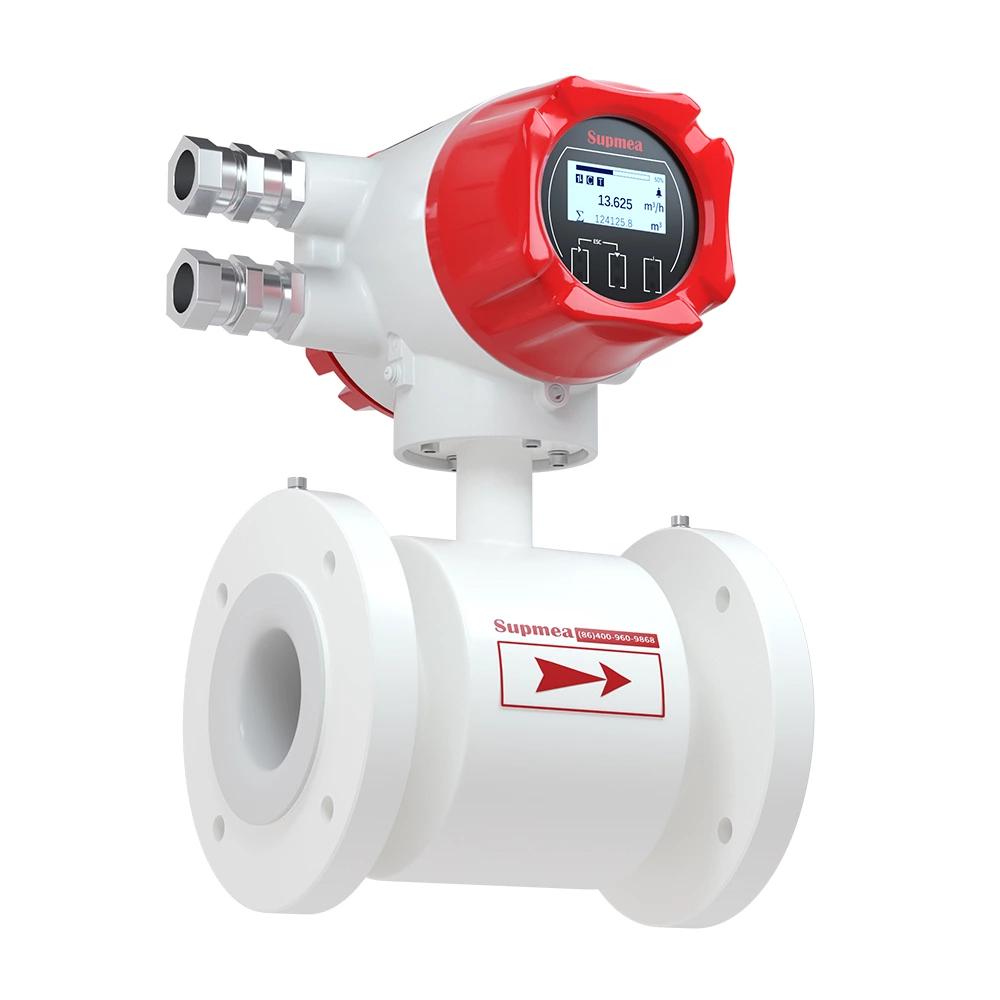

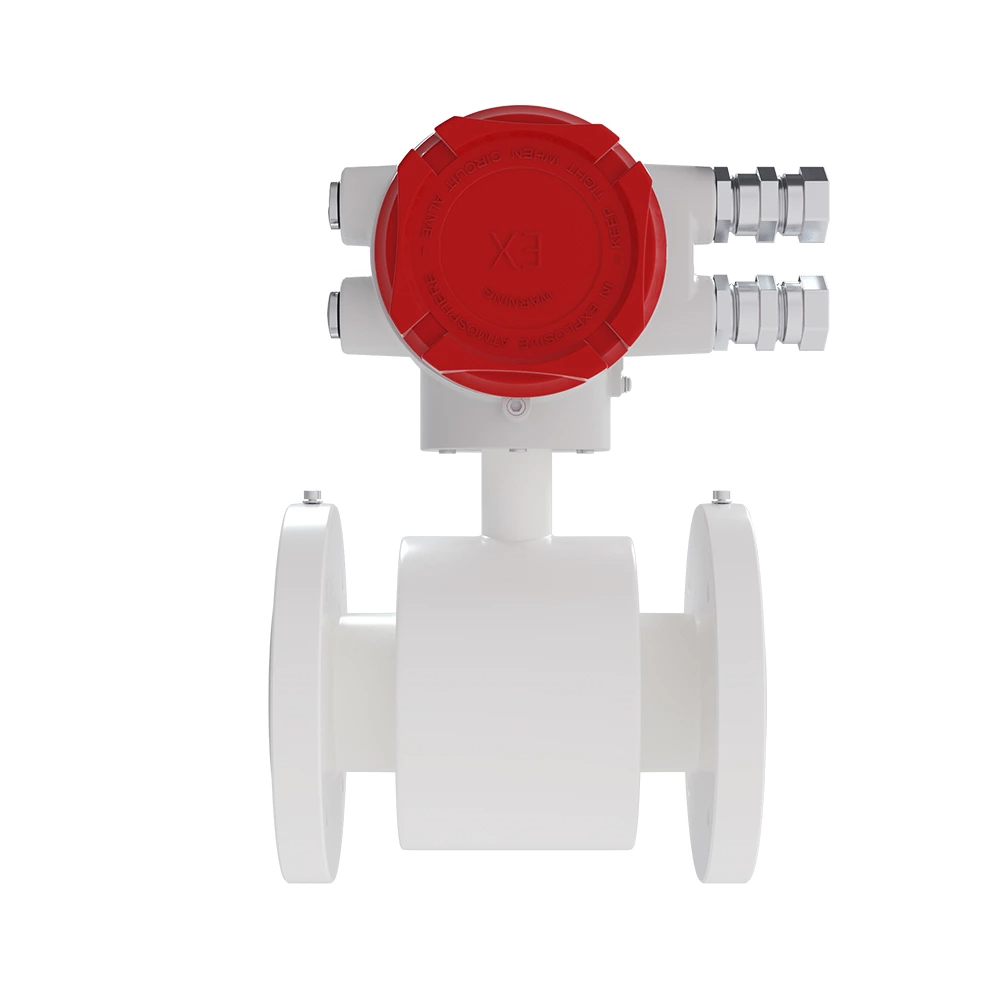

FMX470 Explosion-proof Electromagnetic Flow Meter
The electromagnetic flowmeter is designed based on the Faraday electromagnetic induction principle and used to measure the instantaneous flow rate of conductive liquids in enclosed pipelines in flammable and explosive environments. During on-site monitoring and display, standard current signals, pulse signals, and RS485 digital signals can be output for recording, adjustment, and control, achieving automatic detection and control. It can be widely used in industries such as tap water, chemical industry, coal, environmental protection, light textile, metallurgy, papermaking, etc.
Characteristics
Accuracy: Measurement value±0.5%(Flow velocity 0.5m/s~5m/s)
Direct measured variables：Flow velocity
Calculated measured variables：Volume flow, mass flow
UL certifications: Meet the UL 61010-1 and CAN/CSA-C22.2 No. 61010-1-12 standards of UL
Velocity of flow：Typically Velocity of flow：0.5m/s~5m/s
Terminals：Screw type terminal block, maximum wire diameter 2.5mm2
Note: The product is a flameproof intrinsic safety composite explosion-proof type. The product header is designed with explosion-proof structure, the sensor measuring electrode part is designed with intrinsic safety, and the intrinsic safety circuit is an internal circuit with no external output.
