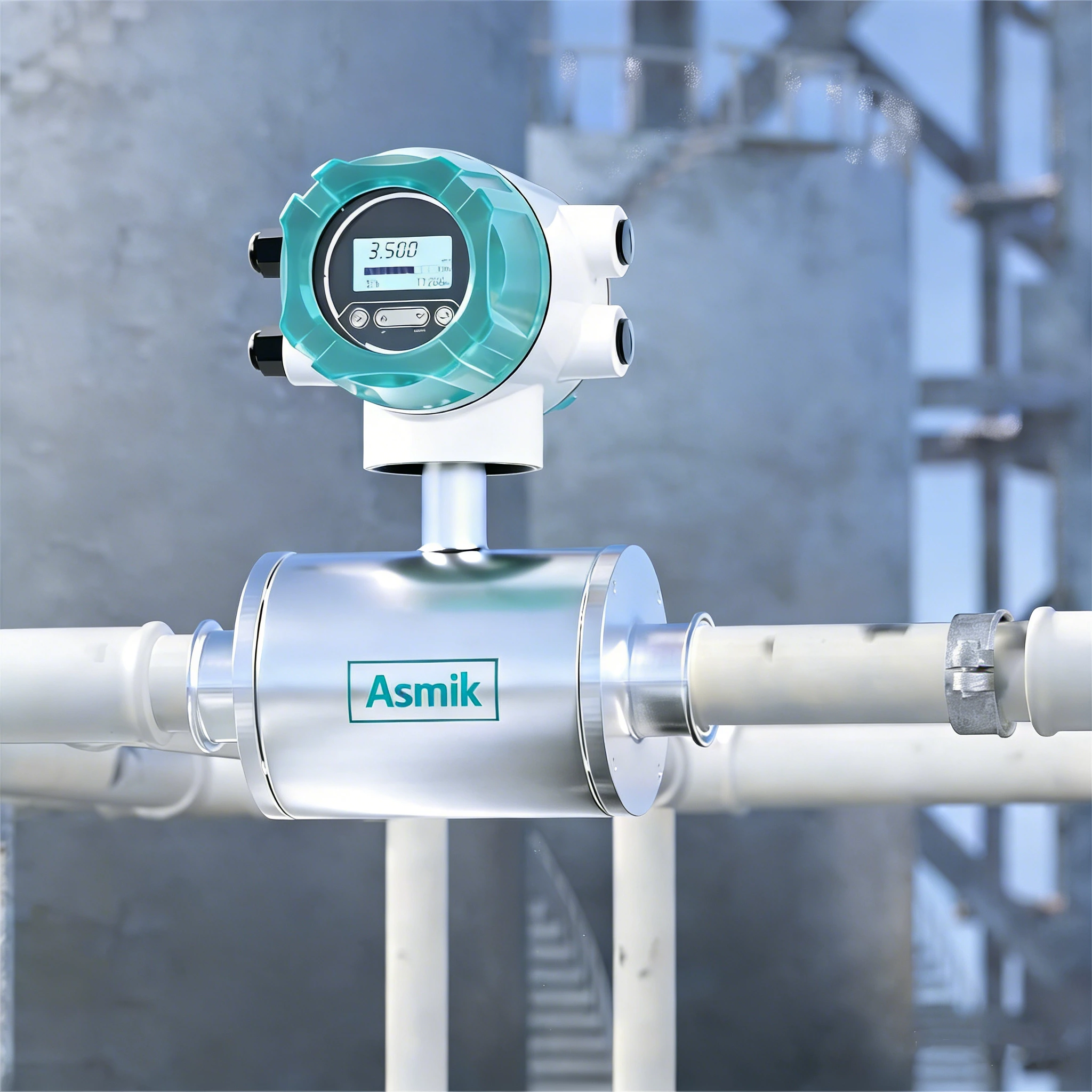

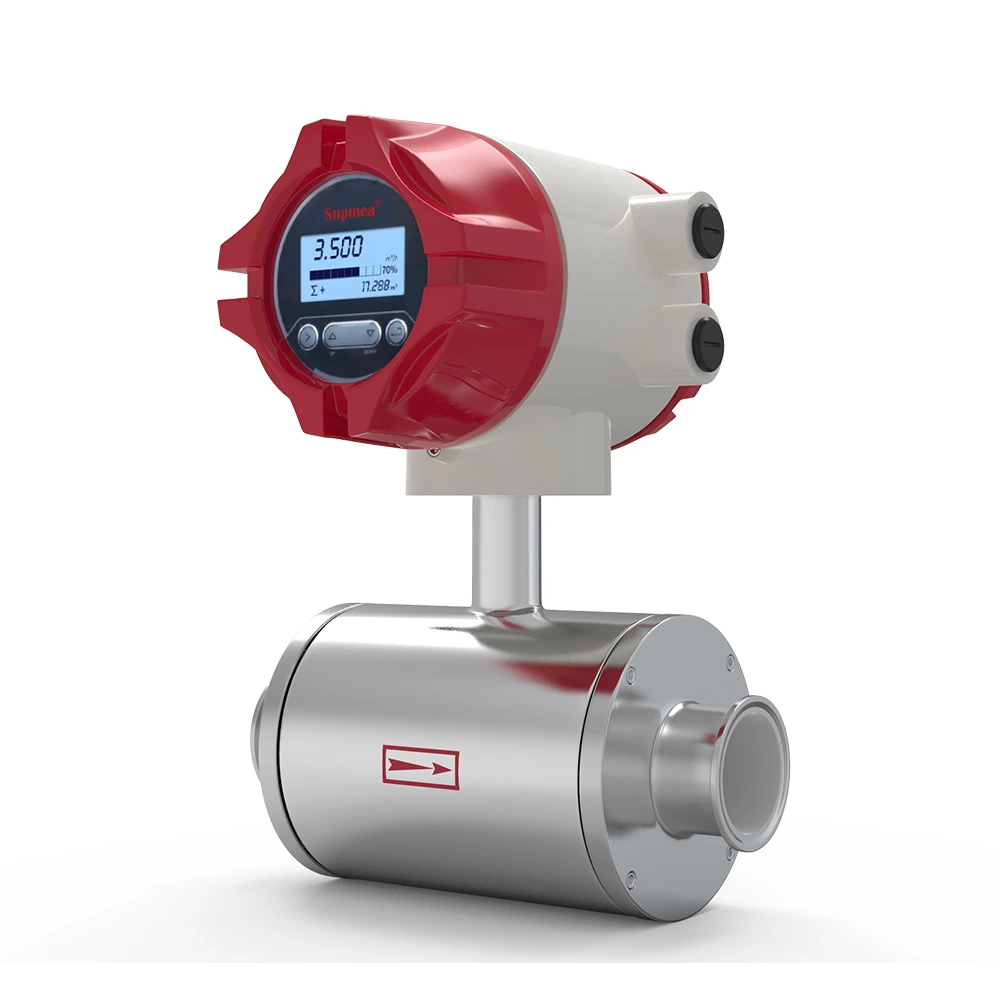

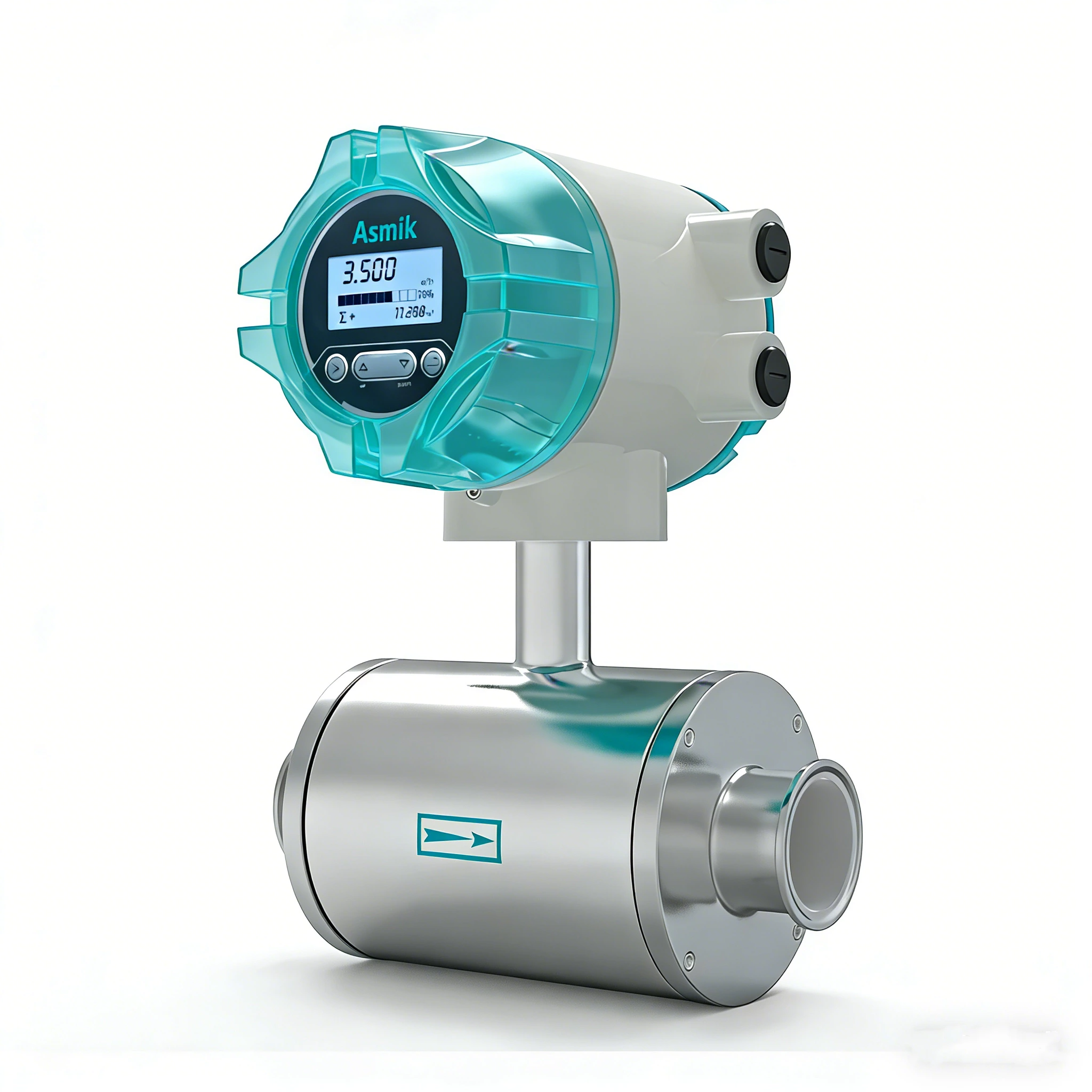

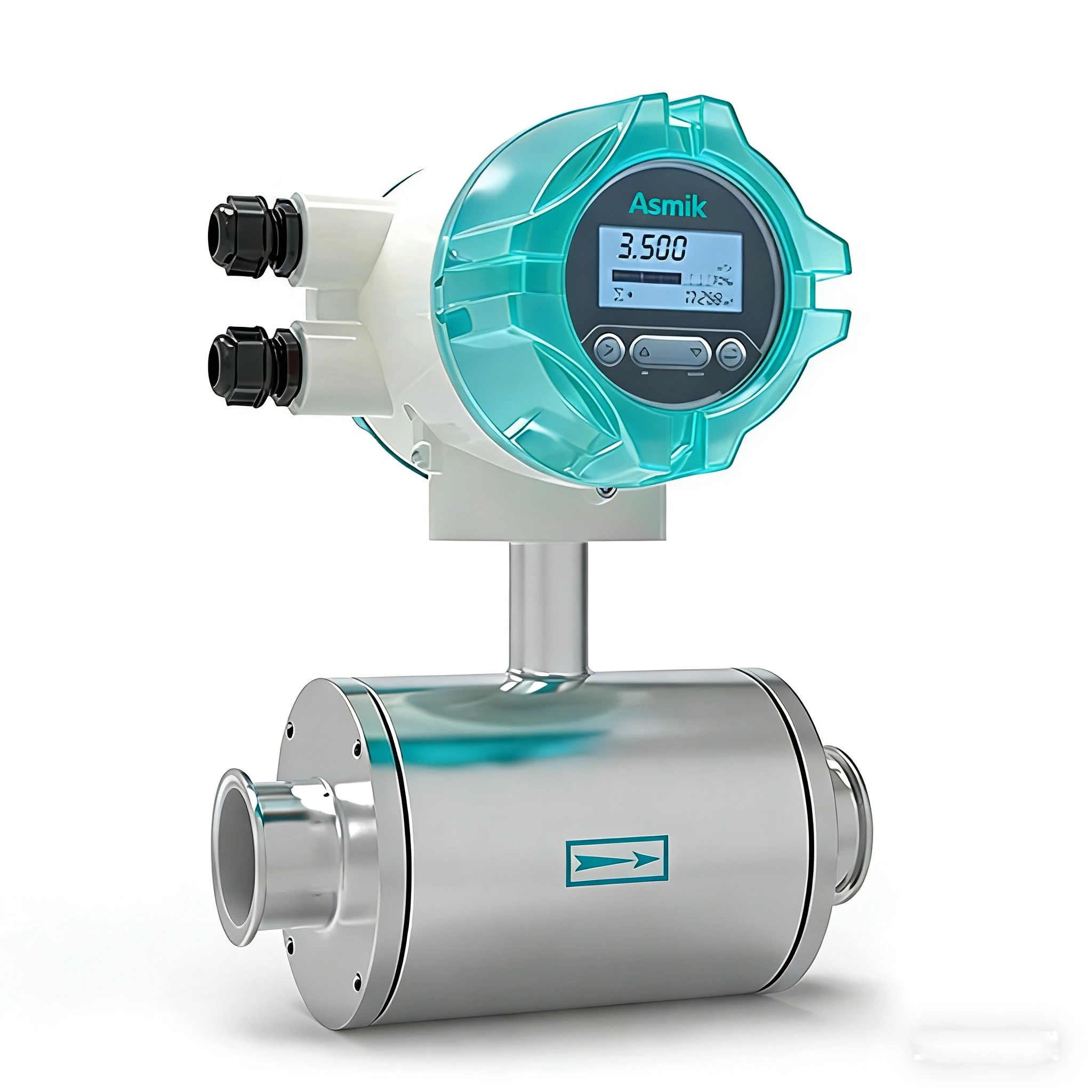

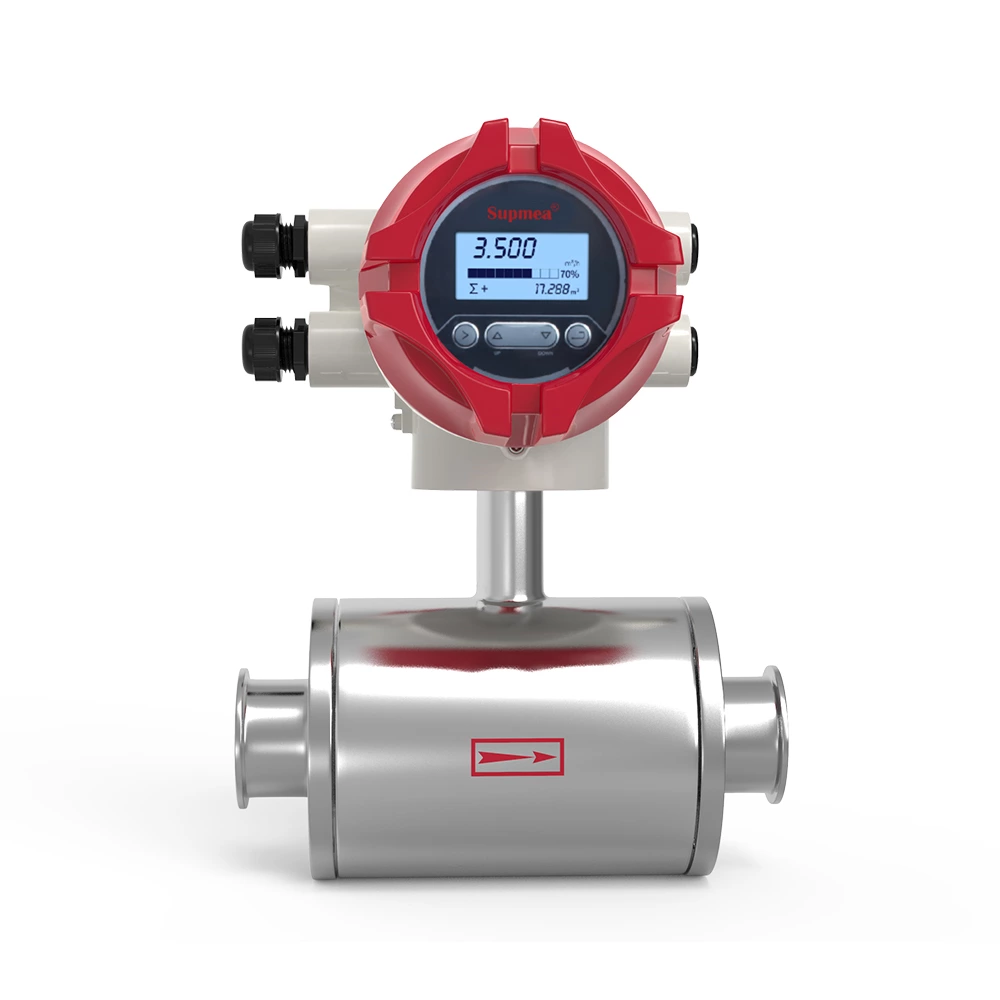

MIK-LDG Sanitary electromagnetic flowmeter for food processing

The MIK-LDGS is a sanitary type electromagnetic flowmeter with a 316L stainless steel sanitary body, designed for food and beverage processing. It measures the flow of conductive liquids such as drinking water, milk and beer.

The MIK-LDGS uses a 316L stainless steel sanitary body.

It measures conductive liquids in food and beverage processing, such as drinking water, milk, beer and other beverages. The liquid's conductivity must be at least 20 μS/cm for water and 5 μS/cm for other liquids; above 30 μS/cm is recommended. It cannot measure non-conductive liquids such as edible oils.

The MIK-LDGS is available from DN15 to DN100.

Flange connections to ANSI, JIS or DIN standards are available. If your line requires a sanitary clamp or another hygienic connection, please tell us the connection type and standard when requesting a quotation, and we will confirm the configuration.

Certification requirements differ by market and application. Please tell us which certificates or material declarations your project requires, and our team will confirm what can be provided.

The allowable medium temperature is -10 °C to 80 °C for the integral type and -25 °C to 180 °C for the split type, depending also on the liner material. Please tell us your cleaning method, cleaning agents, temperature and duration, and we will confirm a suitable configuration.

• Accuracy: ±0.5%; ±0.5% ±2 mm/s when flow velocity is below 1 m/s
• Repeatability: 0.2%

Nominal pressure ratings range from 0.6 MPa to 4.0 MPa. Please tell us your working pressure when ordering.

Options include PFA, FEP (F46), PTFE and neoprene. For food and beverage applications, fluoropolymer liners such as PTFE and PFA are commonly chosen for their chemical resistance and smooth surface. Our engineers can recommend a liner for your product and cleaning process.

Options include SUS316L stainless steel, Hastelloy C, titanium, tantalum and platinum-iridium.

• Integral type: -10 °C to 80 °C
• Split type: -25 °C to 180 °C

For hot products or high-temperature cleaning, the split type is recommended.

In the integral type, the converter is mounted directly on the sensor. In the split type, the converter is installed separately and connected by cable. The split type supports higher medium temperatures and allows the converter to be placed away from washdown areas or hard-to-reach positions.

The ambient temperature range is -10 °C to 55 °C.

IP65 is standard, and IP68 is optional.

AC: 100–240 VAC, 50/60 Hz. DC: 22–26 VDC.

Output options include pulse, 4–20 mA and RS485 communication, allowing connection to PLC, batching and filling control systems.

Yes. Electromagnetic flowmeters are widely used for filling, dosing and batching of conductive liquids. With pulse and 4–20 mA outputs, the MIK-LDGS can be connected to filling and batching controllers. Please tell us your batch volume and filling time so we can confirm suitability.

The MIK-LDGS is manufactured according to the JB/T 9248-2015 standard for electromagnetic flowmeters.

• The measuring tube must always be completely full of liquid.
• Avoid air bubbles; vertical pipes with upward flow are preferred.
• Provide sufficient straight pipe upstream and downstream of the meter.
• Ground the sensor properly for a stable signal.
• Consider cleaning and drainage requirements of your process when choosing the mounting position.

Please follow the installation manual or contact our engineers for site-specific requirements.

No. It has a full-bore design with no moving parts or throttling components, so there are no dead zones from internal parts, pressure loss is minimal, and maintenance needs are low. It also supports bidirectional flow measurement.

To help us select the correct model, please provide:

• Product name (e.g., milk, beer, juice, drinking water) and conductivity
• Flow range (min / normal / max)
• Pipe size and process connection type and standard
• Product temperature and working pressure
• Cleaning method (CIP/SIP), temperature and duration
• Required certificates or material declarations
• Integral or split type, and IP rating
• Power supply and output requirements
• Quantity

Send your requirements to info@asmik.com or contact us via WhatsApp at +86 13325716921.
