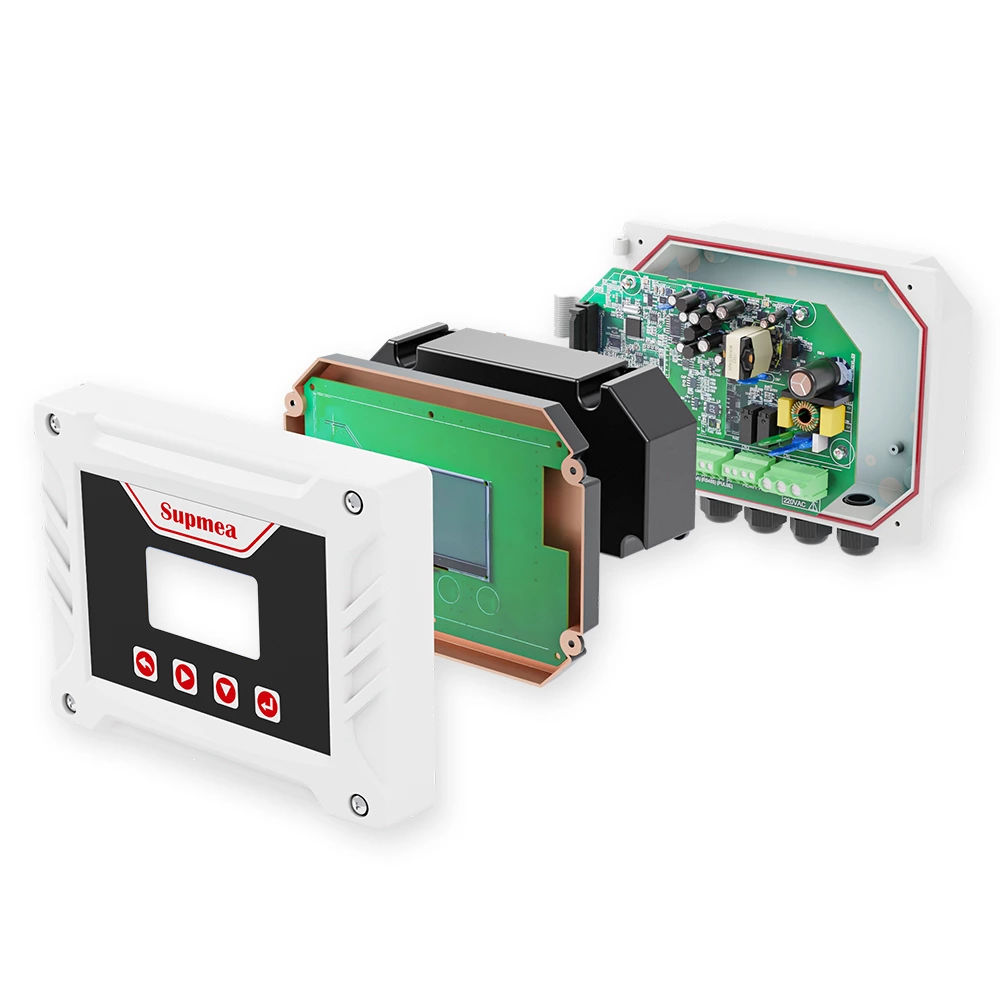

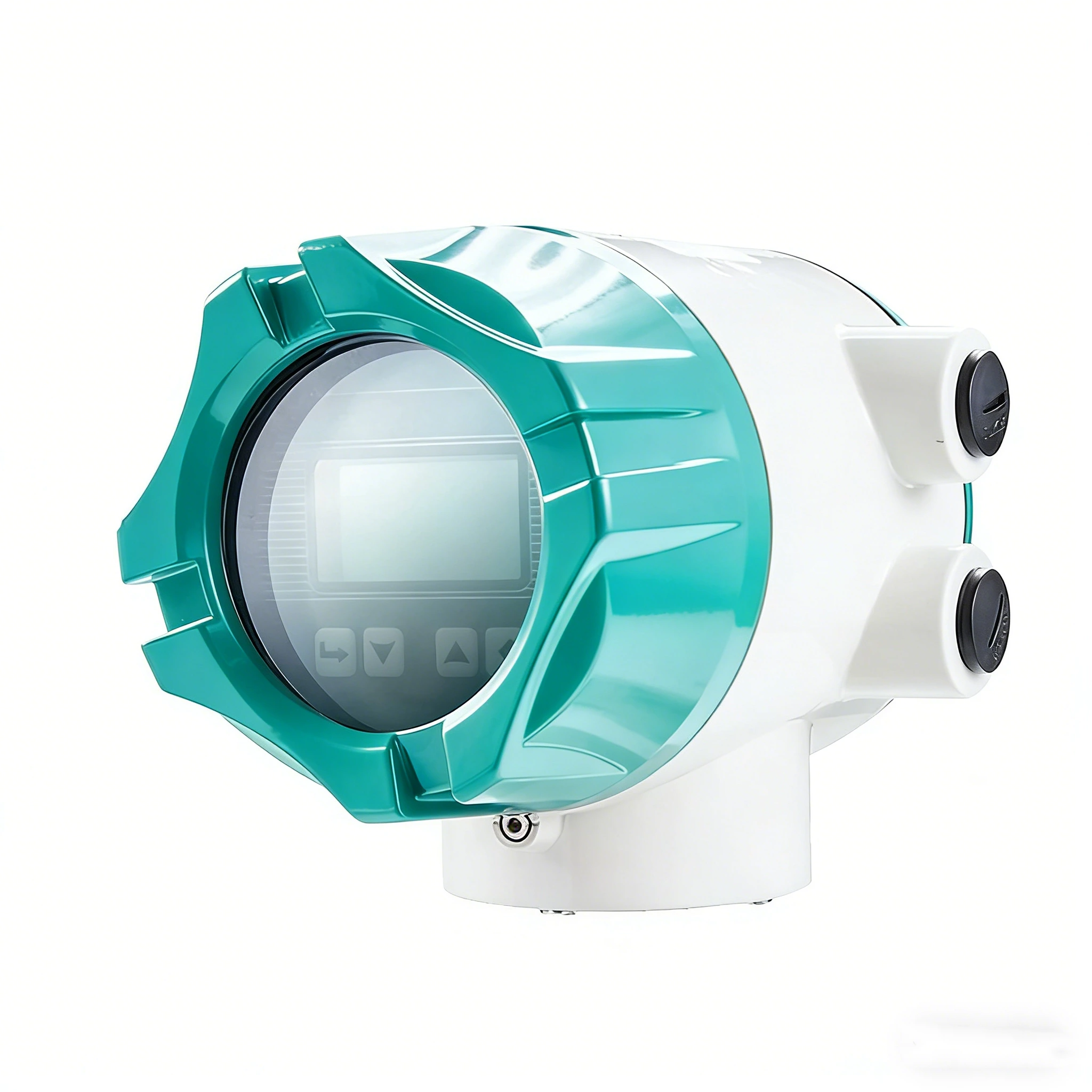

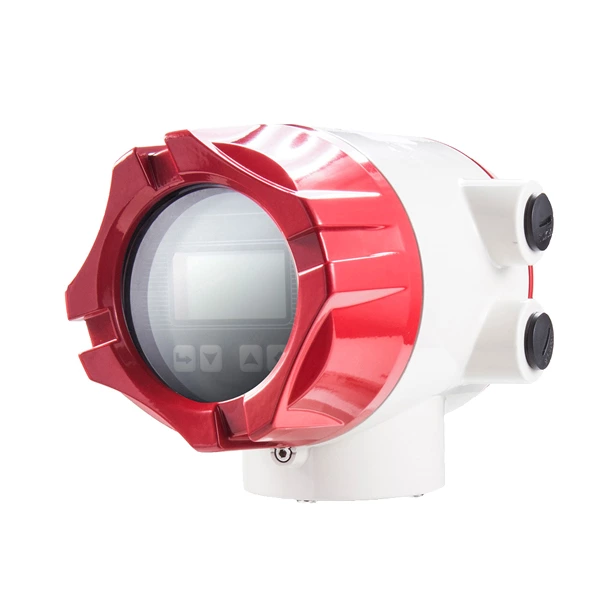

Magnetic flow transmitter

It is a signal converter (transmitter) for electromagnetic flowmeters. It processes the signal from the flow sensor, displays the measurement on an LCD, and provides current, pulse, switch and RS485 outputs. "Simple setting" parameters and intelligent diagnostics make commissioning and maintenance easier.

An electromagnetic flowmeter has a modular structure made up of a measuring sensor and a signal converter. The sensor generates a voltage proportional to flow velocity based on Faraday's law of induction, and the transmitter converts this signal into flow values, displays them and outputs them to control systems.

It shows instantaneous flow rate and flow velocity. Mass flow can also be displayed when the liquid density is constant.

It has a monochrome liquid crystal display with white backlight and a resolution of 128 × 64 pixels. Two measurement screens are available to show measured values, status and other information.

It is operated with four keys, available as infrared touch keys or mechanical keys. The "simple setting" menu makes parameter configuration quick and convenient.

The display language is English.

Yes. Flow rate units can be selected through the configuration menu.

• Current output: 4–20 mA
• Pulse / frequency output
• Switch output

It supports RS485 serial communication for connection to PLC, DCS, SCADA and data acquisition systems. Please tell us the protocol your system requires so we can confirm compatibility.

You can set the flow sensor diameter, liner material, electrode material and flow coefficient, as well as display units and output settings. This allows the transmitter to be matched to the connected sensor.

Intelligent diagnostics include empty pipe identification and electrode contamination detection, helping users find problems early and reduce downtime.

The configurable sensor parameters make the transmitter suitable for many replacement and upgrade projects. Because sensors from different manufacturers can differ in excitation and signal characteristics, please send us the sensor brand, model, size, liner, electrode material and flow coefficient so we can confirm compatibility before ordering.

Yes, when the liquid density is constant, the transmitter can calculate mass flow from volume flow. For liquids with changing density, or when you need direct mass and density measurement, see our Coriolis mass flowmeters.

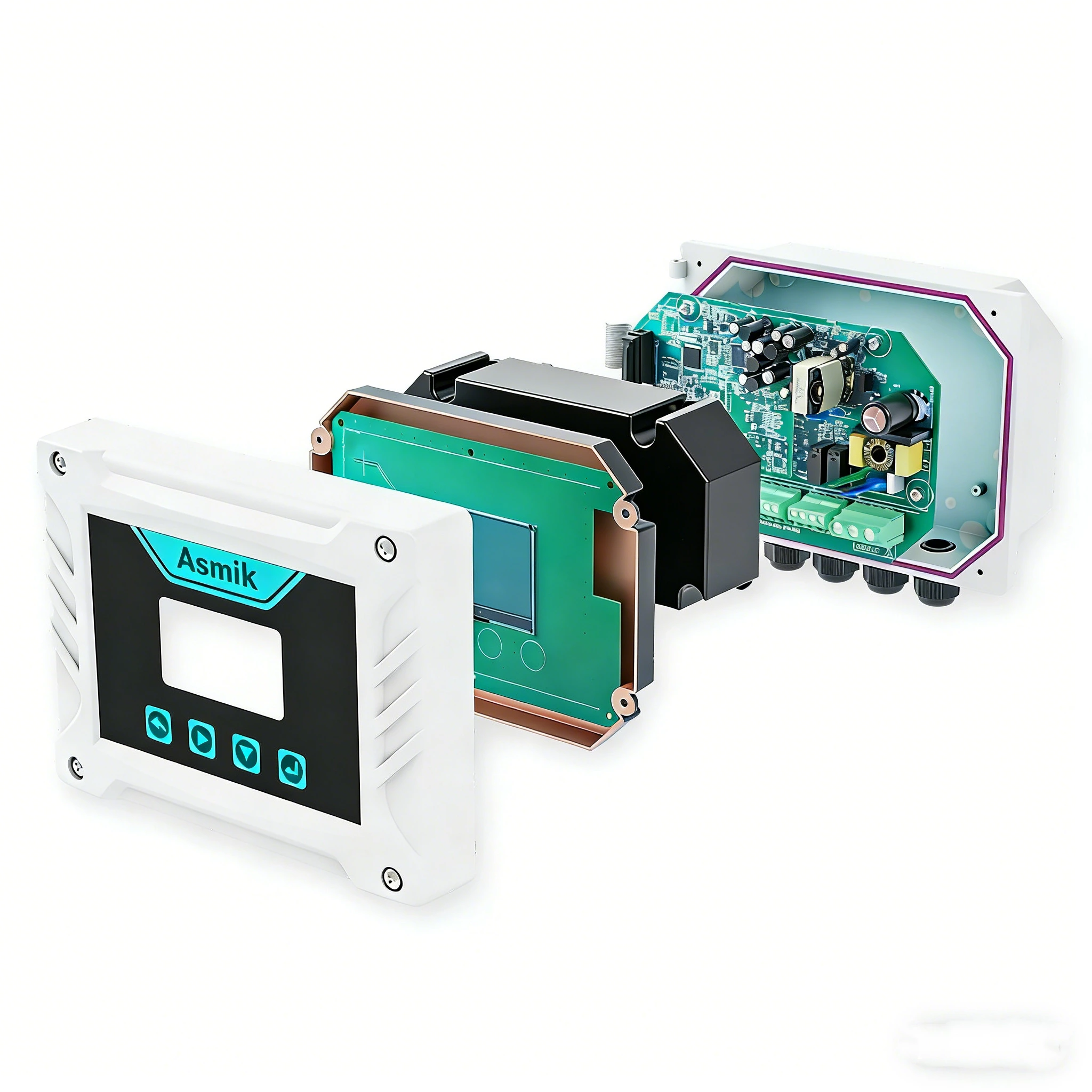

Yes. Asmik supports customized appearance color and surface stickers, which is useful for OEM partners, system integrators and distributors who want the transmitter to match their brand.

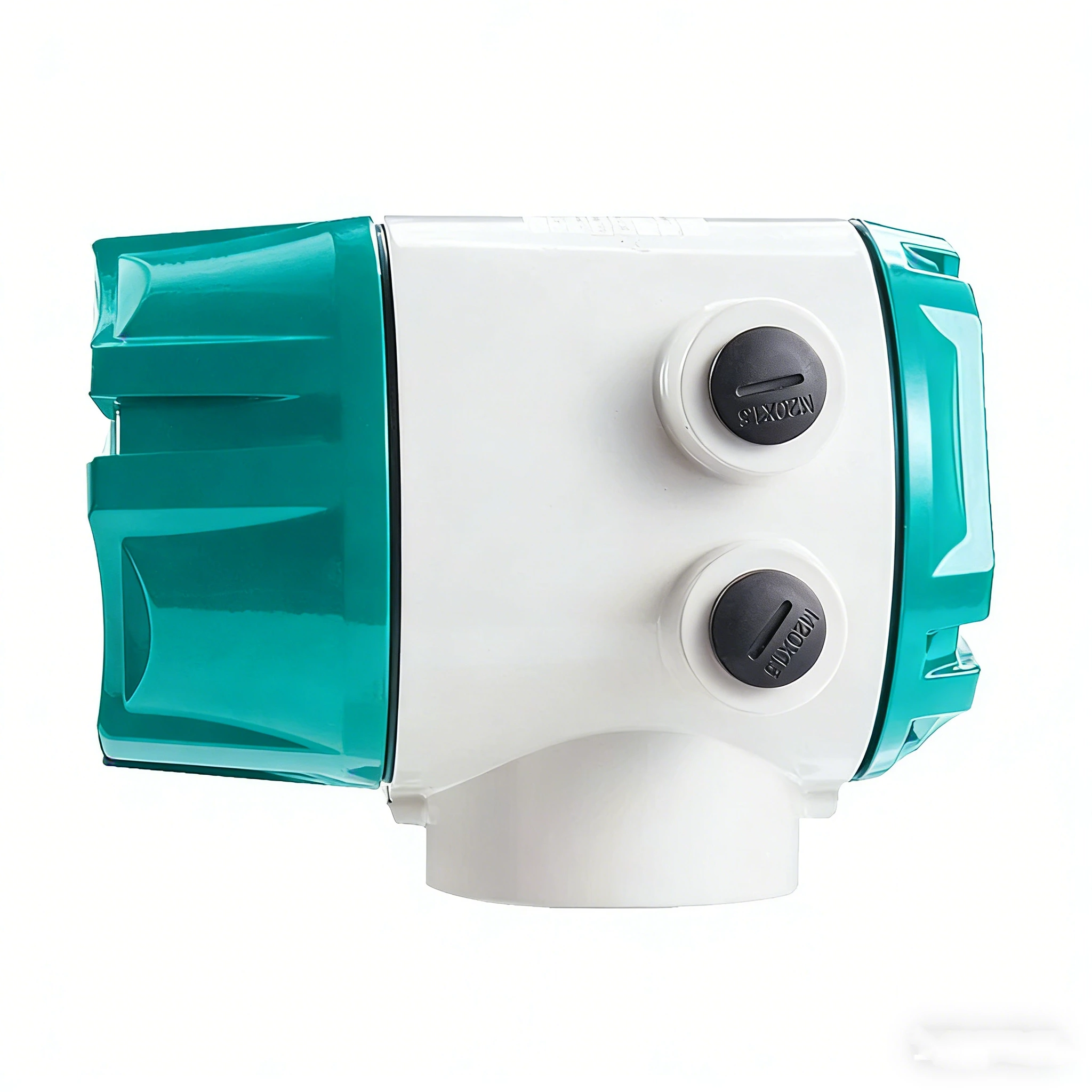

Please tell us your available power supply, installation environment and mounting method (for example on the sensor or wall mounted), and our team will confirm a suitable configuration.

It is designed for use with electromagnetic flow sensors. Asmik offers a range of sensors, such as the MIK-LDG Carbon Steel Body, MIK-LDG Stainless Steel Body and MIK-LDG Remote Type. Please contact us to confirm the right combination for your application.

The LCD with clear status information, simple parameter settings and diagnostics for empty pipe and electrode contamination help technicians check the meter status and troubleshoot quickly on site.

To help us select the correct model, please provide:

• Connected sensor brand, model and size
• Sensor liner and electrode materials, and flow coefficient (if replacing an existing transmitter)
• Required outputs and communication protocol
• Available power supply
• Mounting method and installation environment
• Customization needs (color, stickers)
• Quantity
