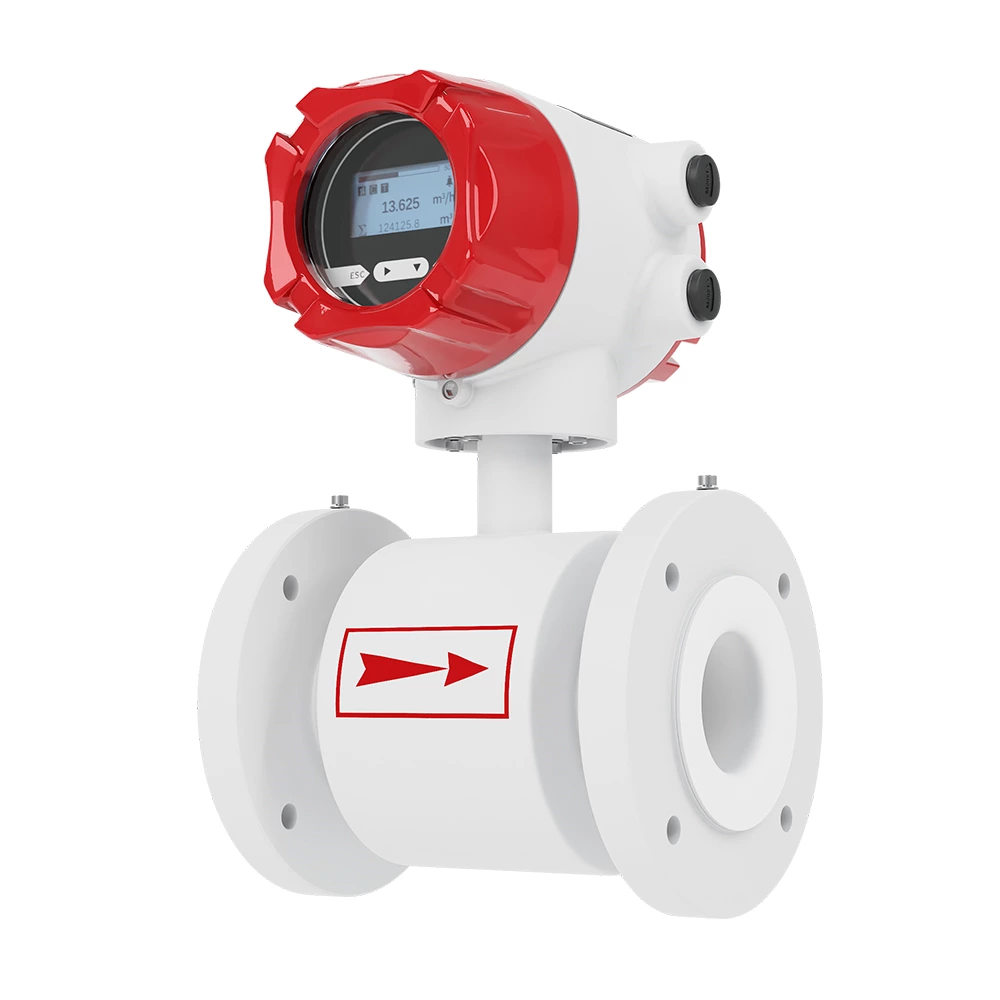

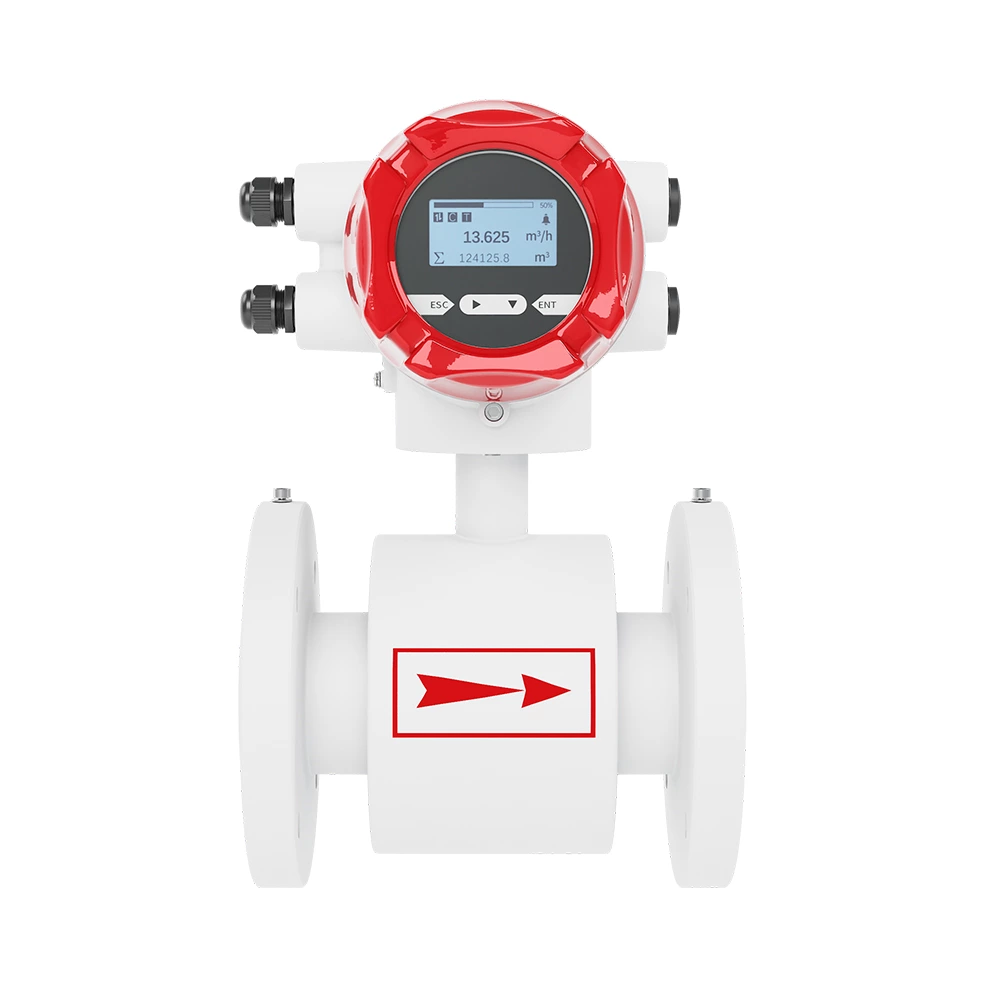

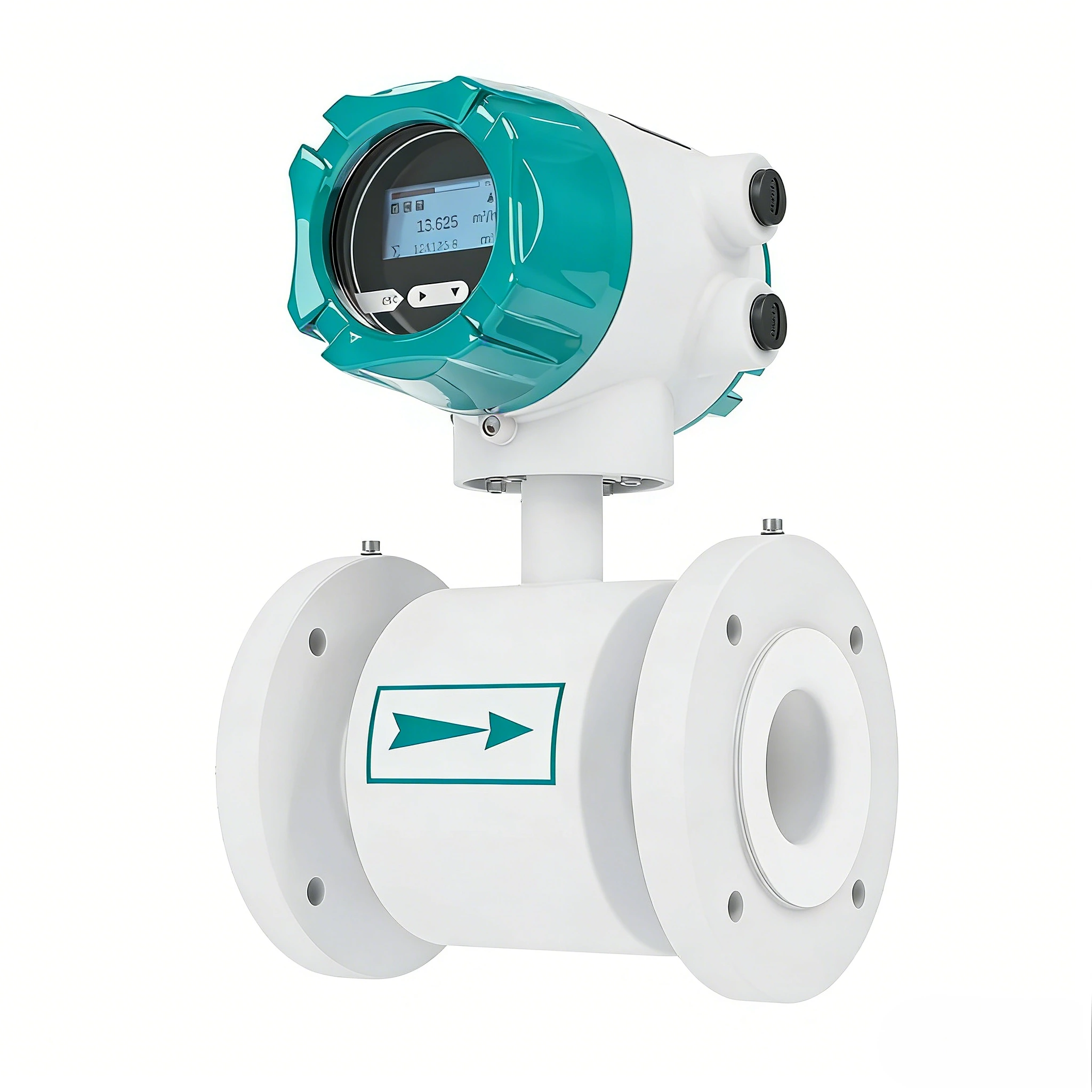

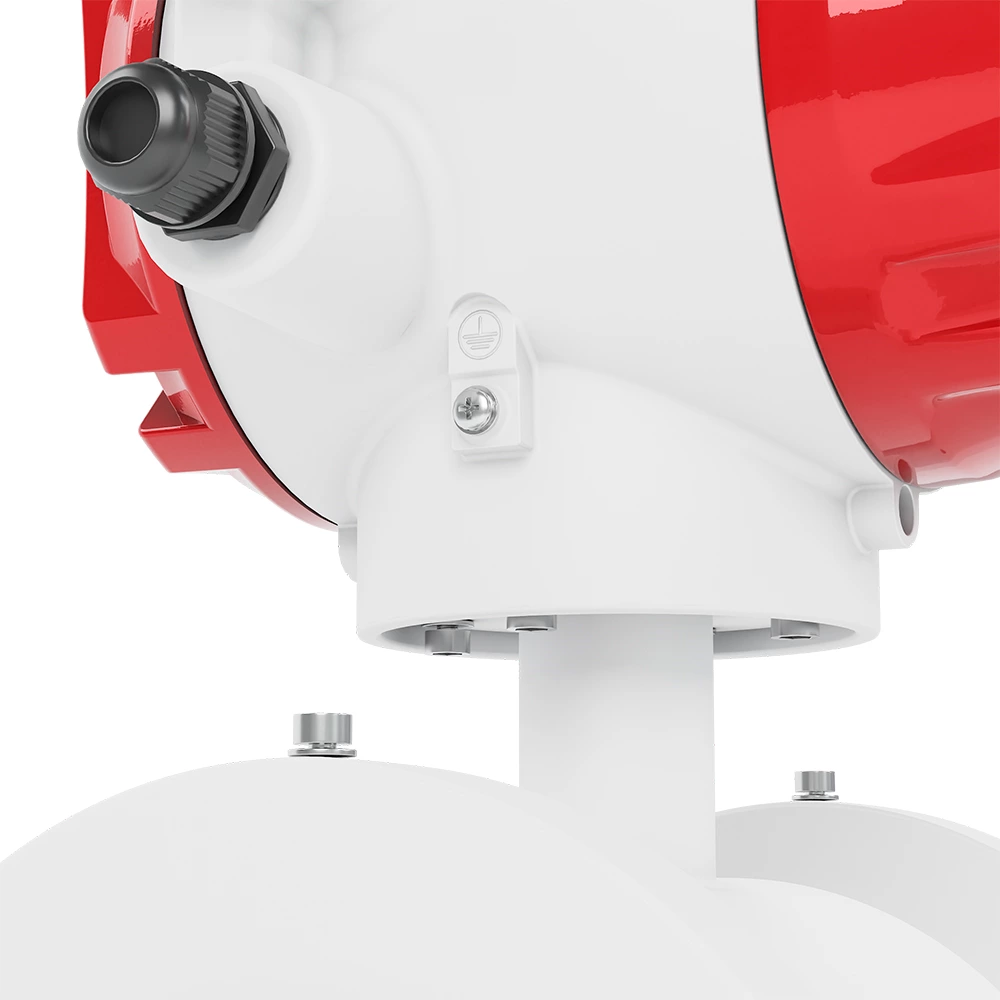

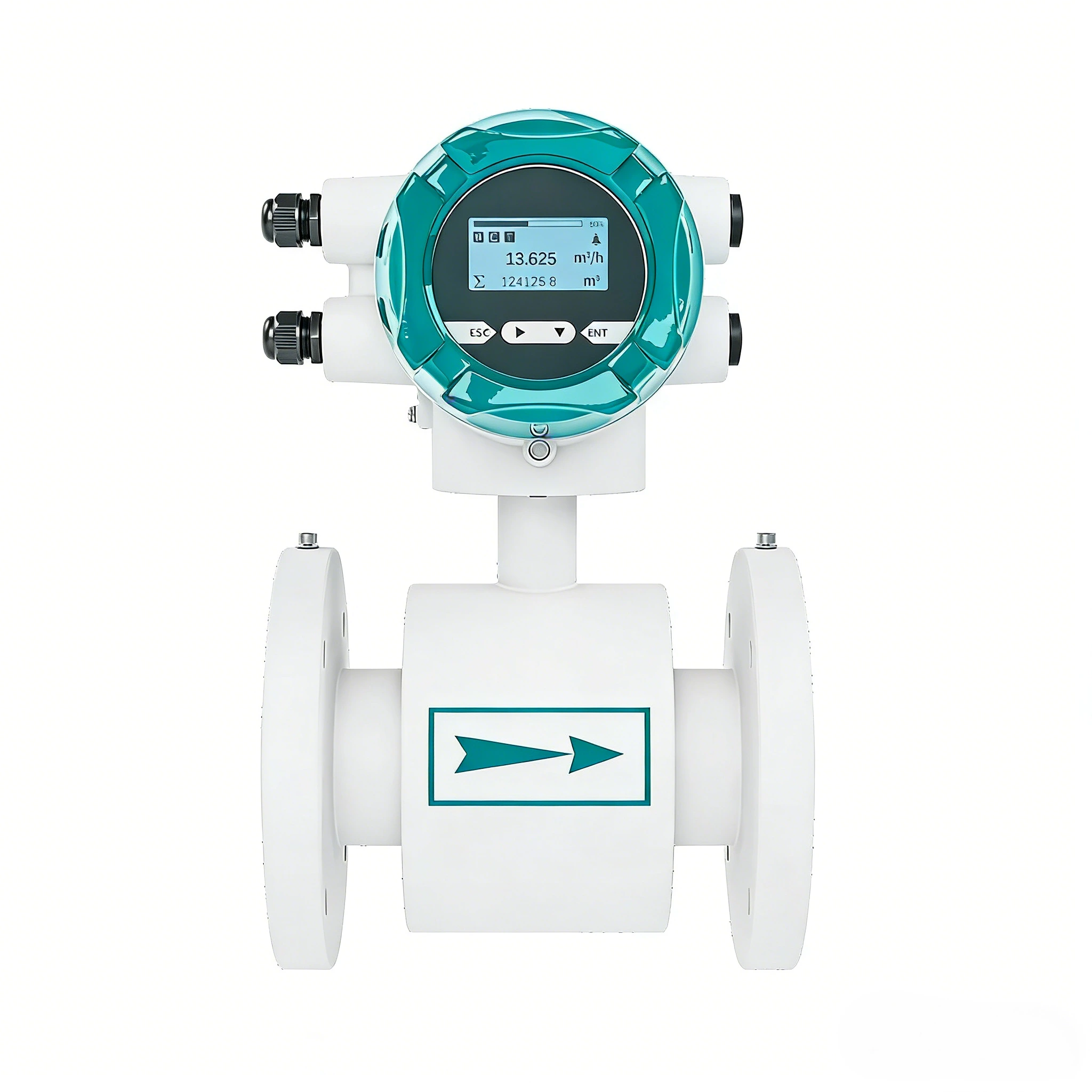

The electromagnetic flowmeter is designed based on the Faraday electromagnetic induction principle and is used to directly measure the flow rate of conductive liquids in closed pipelines.
Pipe diameter: DN10~DN1000
Accuracy: ±0.5% of measured value; ±0.3% of measured value (available for selected pipe sizes)
Repetitiveness: 0.16%
Electric conductivity: ≥50μS/cm
| Measured variable | Direct measured: Flow velocity Calculated value: Volume flow, mass flow. |
|
| Flow velocity range | Typically range of flow velocity: 0.5m/s~5m/s | |
| Nominal diameter | DN10~DN1000 | |
| Communications | RS485; MODBUS-RTU; Hart communication (optional) | |
| Relay (Remote type optional ) | 2 channels SPST; 250VAC; 3A | |
| Supply voltage | 100VAC~240VAC, 50/60Hz; 20VDC~28VDC | |
| Power consumption | ≤15W | |
| Reference operating conditions | Medium: water Temperature: 20℃ Pressure: 0.1MPa Installation requirements: Inlet run≥10DN, Outlet run≥5DN | |
| Accuracy | ±0.5% of measured value; ±0.3% of measured value (available for selected pipe sizes) Note: Applicable to flow velocity range of 0.5 m/s to 5 m/s | |
| Repetitiveness | 0.16% | |
| Medium temperature range | CR liner: -10℃~70℃ PU liner: -10℃~60℃ PTFE/F46 liner-10℃~120℃ | |
| Rated pressure (Customizable for high-pressure applications) | DN10~DN250: PN<1.6MPa DN300~DN1000: PN<1.0MPa Note: For certain specifications, actual values may vary; refer to the nameplate for exact information. High-pressure versions are available upon request. | |
| Conductivity | ≥50μS/cm | |
| Ambient temperature | Integrated type | -10℃~55℃ |
| Remote type | Converter:-20℃~55℃ Sensor: -10℃~55℃ | |
| Storage temperature | -20℃~55℃ | |
| Protection level | Integrated type | Standard: IP65 |
| High protection: IP66/IP67 | ||
| Remote type | Sensor: IP65 Converter: IP68 | |
