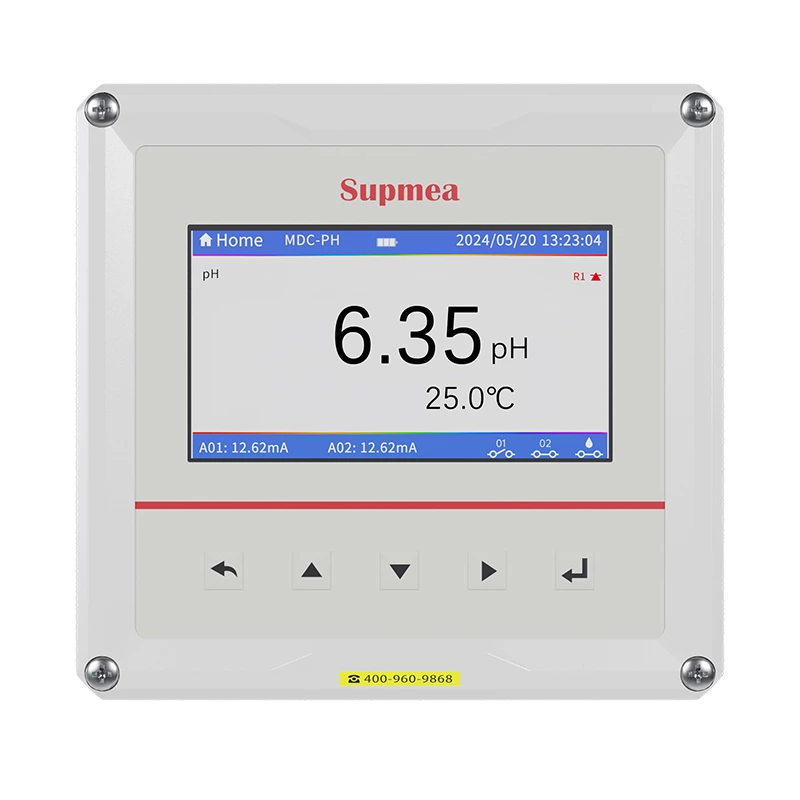

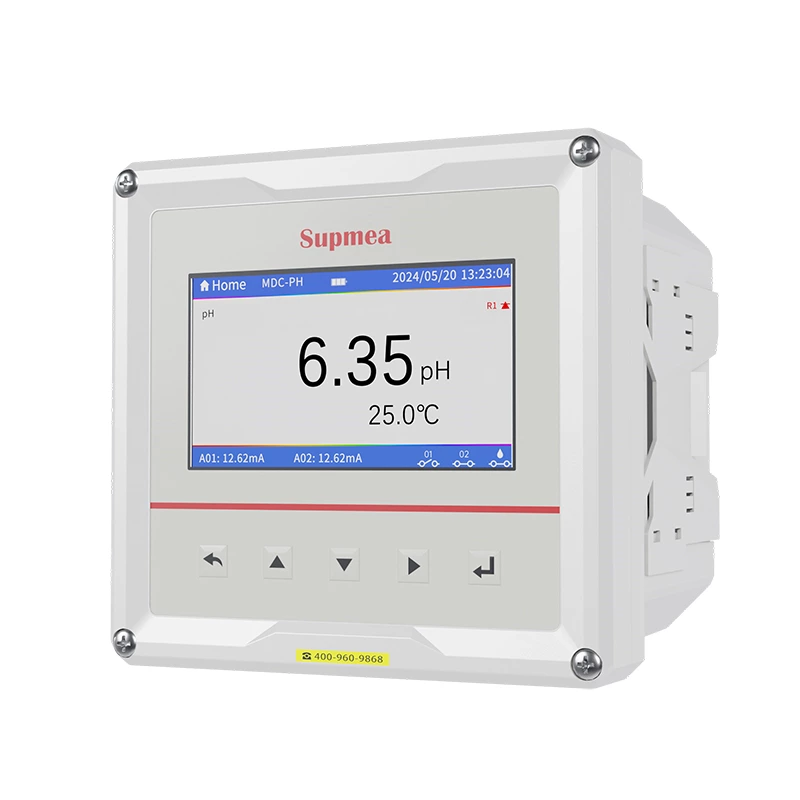

PH Controller SUP-MDC-PH smart, online pH/ORP transmitter

The MDC-PH Controller is a smart, online pH/ORP transmitter. Its multi-mode channel functionality allows for the connection of both analog and digital sensors. Continuous monitoring data can be transmitted to a DCS system via output connections for remote tracking and recording. Alternatively, communication with computers is possible through an RS485 interface using the Modbus-RTU protocol, enabling computer-based monitoring and recording.

Characteristics

Measuring ranges:pH/Antimony：(-2.00 ~ 16.00) pH ORP：(-2000 ~ 2000) mV

Temperature types:NTC10K ，Pt1000 ，Pt100

Temperature range:(-10~130)℃

Accuracy:pH:±0.02pH

Antimony：±0.2pH

ORP：±2mV

Specification

Spectification

Analog sensor input
Measured variables	pH / ORP / Antimony
Measuring ranges	pH/Antimony:(-2.00 ~ 16.00) pH
Measuring ranges	ORP:(-2000 ~ 2000) mV
Input impedance	≥1012Ω
Temperature types	NTC10K,Pt1000,Pt100
Temperature range	(-10~130)℃
Accuracy	pH:±0.02pH
	Antimony:±0.2pH
	ORP:±2mV
	NTC10K:(-10~60)℃,accuracy ±0.3℃
	(60~130)℃,accuracy±2℃
	Pt1000:accuracy±0.3℃
	Pt100:accuracy±0.3℃
Resolution	pH/Antimony:0.01pH;
Resolution	ORP:1mV
Repeatability	0.02pH
Temperature compensation	Manual compensation;
Temperature compensation	Automatic compensation:Linear,Acid,Base,Pure
Digital sensor input
Measured variables	pH/ORP
Measuring ranges	pH:(0.00 ~ 14.00) pH
	ORP:(-2000 ~ 2000) mV
	Note:For the actual measurement range,refer to the technical specifications of the connected sensors.
Output
Current output	Isolated,2-channel (0/4~20) mA configurable to corresponding measurement ranges,load capacity 750Ω,output accuracy ±0.1%FS,compliant with NAMUR NE 43 standards.
Communication output	Isolated,RS485 interface,Modbus-RTU communication protocol.
Alarm output	3-channel SPST(2 alarms + 1 cleaning),NO/NC type,capacity 250VAC,5A.
Alarm relay delay	0~9999 seconds,adjustable.
Electrical specifications
Power supply	AC:(85~265)V,50/60Hz
Power supply	DC:(21.6~26.4) V
Power consumption	≤28W
Cable entries	M20*1.5 cable gland
Cable specification	Spring terminals:suitable for AWG16~AWG24（0.2mm2~1.5mm2）cables;
Cable specification	Plug-in terminals:suitable for AWG12~AWG28（1mm2~2.5mm2）cables;
Environment
Operating environment	Temperature:(0 ~ 60)℃
Operating environment	Relative Humidity:10 %~85%（non-condensing）
Storage environment	Temperature:(-15~65)℃
	Relative Humidity:5%~95%（non-condensing）
	Altitude:<2000m
Ingress protection	IP66
Flame Retardancy	UL94V-0
