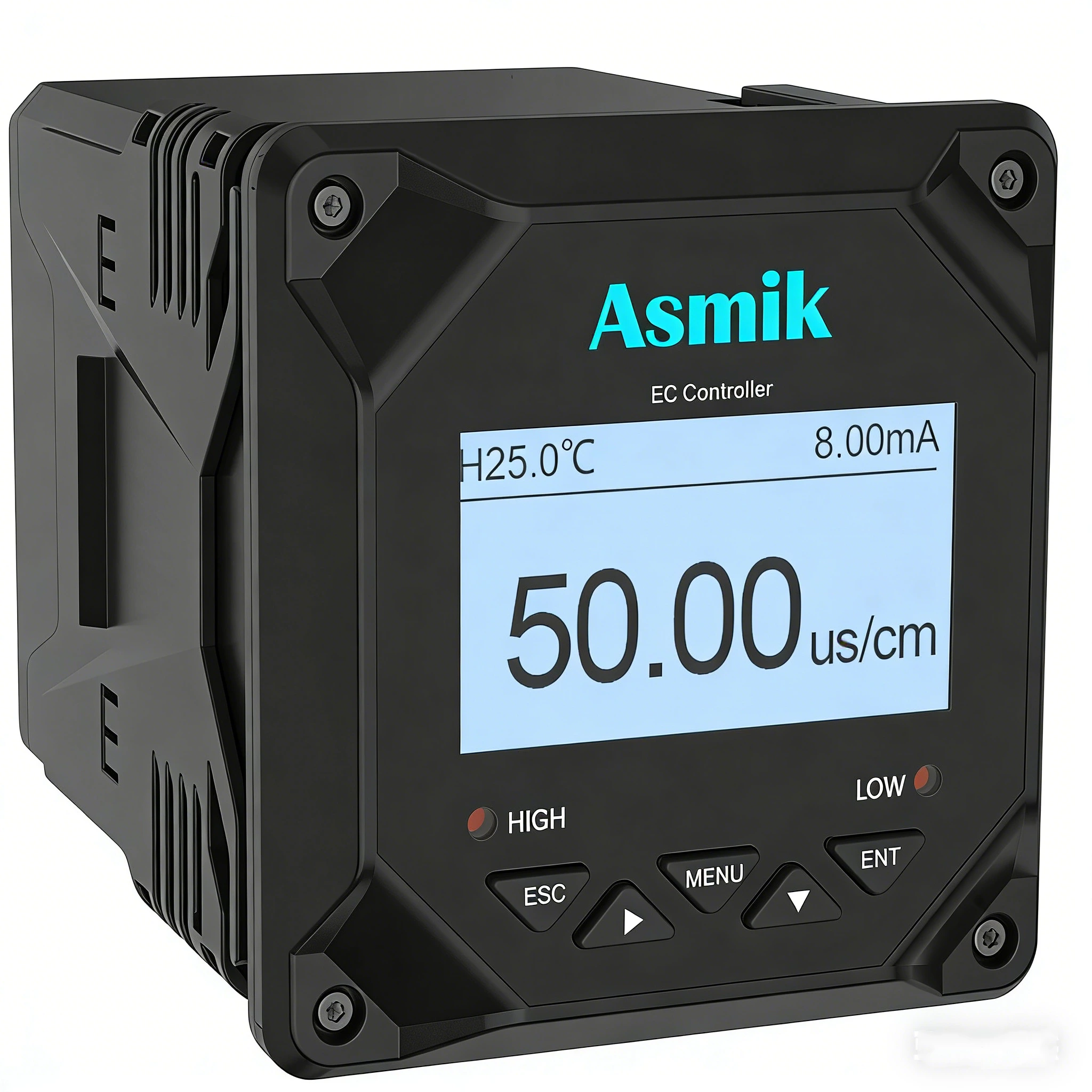

MIK-DC2000 Universal pH meter

The MIK-DC2000 is a universal digital analyzer monitor for online water quality measurement. It can monitor pH, ORP, conductivity, dissolved oxygen, turbidity and sludge concentration, and provides 4–20 mA, RS485 and relay outputs.

pH, ORP, conductivity, dissolved oxygen (with saturation), turbidity and sludge concentration, depending on the connected sensor.

• pH: 0–14 pH
• ORP: -2000 to 2000 mV
• Dissolved oxygen: 0–40 mg/L; saturation 0–200%
• Conductivity: 0–600 mS/cm
• Turbidity: 0–4000 NTU
• Sludge concentration: 0–120,000 mg/L

The actual measuring range depends on the connected sensor.

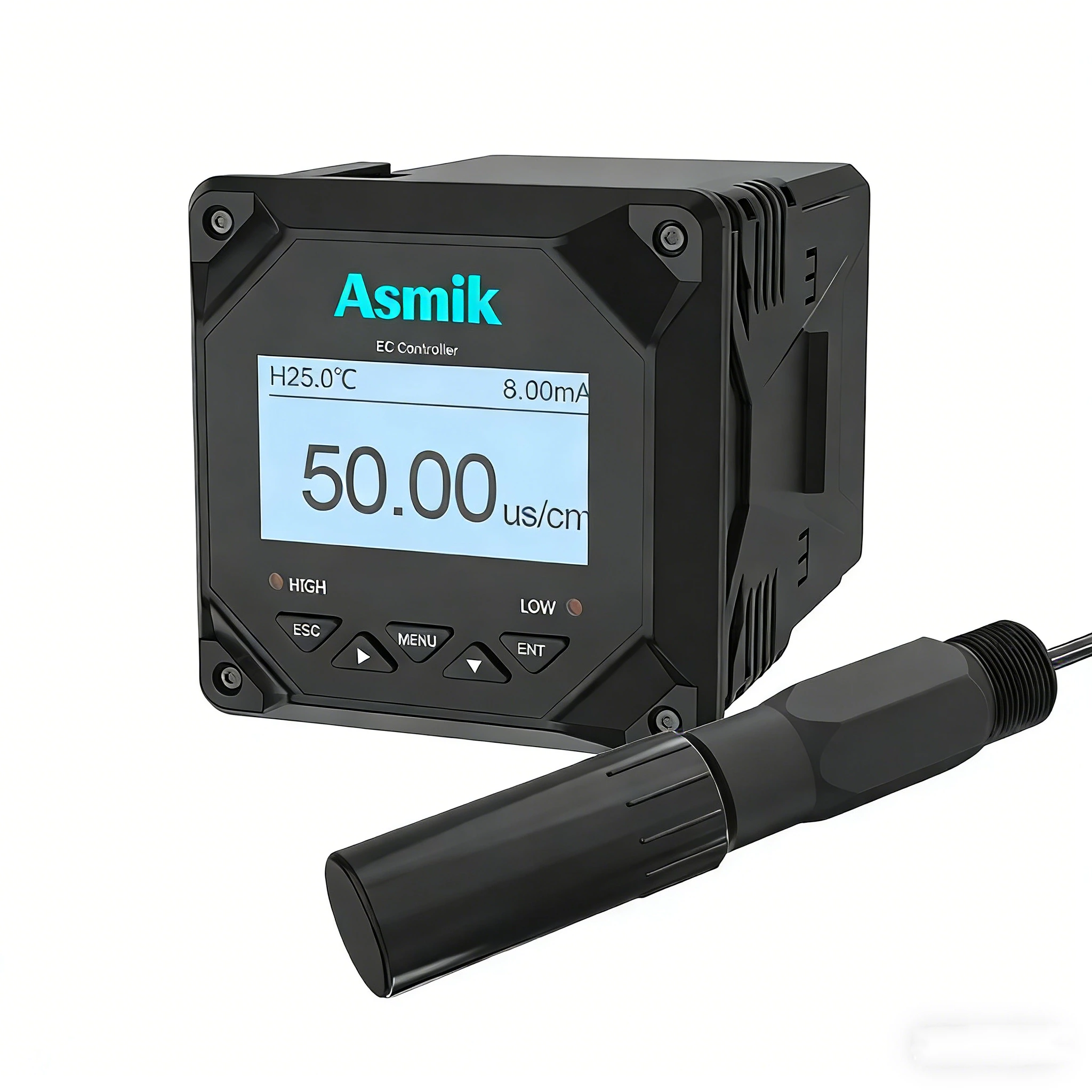

The MIK-DC2000 is a digital analyzer monitor designed for Asmik digital sensors, such as the MIK-PH8001 digital pH sensor, MIK-TDS8001 digital conductivity sensor, MIK-DO7012 optical DO sensor and MIK-PTU-8010 turbidity sensor. Please tell us which sensor you plan to use so we can confirm compatibility.

Please tell us how many parameters you need to monitor at one point. If you need two sensors on one controller, including an analog pH/ORP sensor, see the MIK-DC-P2 dual channel universal controller.

Measurement accuracy depends mainly on the connected sensor. The current output accuracy of the MIK-DC2000 is ±0.2% FS. Please check the specification of the selected sensor.

• Current output: 4–20 mA, load capacity 500 Ω, output accuracy ±0.2% FS
• RS485 output: isolated, Modbus-RTU
• Alarm relays: 2 channels, AC 250 V / 3 A

The MIK-DC2000 provides a 12 V / 125 mA distribution (power) output, which can generally be used to supply power to a connected sensor. Please check the power requirement of your sensor before connecting.

Yes. The two alarm relays can be used for high or low alarms or to switch equipment such as dosing pumps, and the 4–20 mA output can be used by a PLC for proportional control.

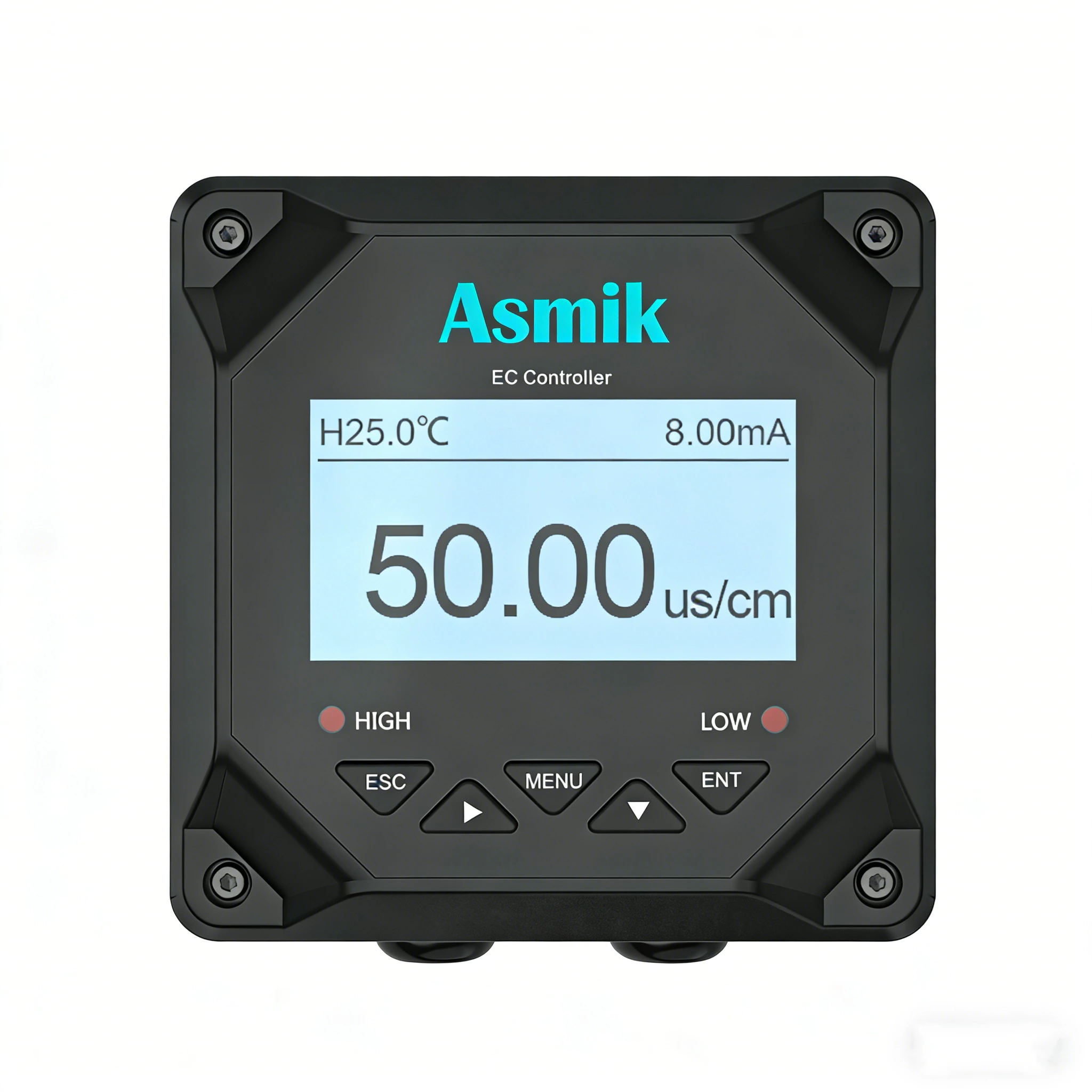

It has a 2.8-inch monochrome LCD with a resolution of 128×64.

• Dimensions: 100 × 100 × 150 mm
• Panel cutout: 92.5 × 92.5 mm

100–240 VAC as standard, with 24 VDC optional.

Please tell us your installation environment. For outdoor or wet locations, install the monitor in a suitable protective enclosure.

• Working temperature: 0 to 60 °C
• Relative humidity: 10% to 85% (no condensation)
• Storage temperature: -15 to 65 °C; humidity 5% to 95% (no condensation)
• Altitude: below 2000 m

• MIK-DC2000: compact 100 × 100 mm digital analyzer monitor for multiple parameter types; 2.8-inch LCD.
• MIK-DC-P2: dual-channel controller accepting analog or digital sensors; 4.3-inch color screen; IP66; optional NB-IoT.
• MIK-PH8.0: dedicated pH/ORP meter for analog electrodes; 4.3-inch screen; IP65.

Calibration is performed for the connected sensor, for example with pH buffer solutions or conductivity standards. Please follow the calibration procedure in the manual for your sensor and monitor.

It is used for online water quality monitoring in water and wastewater treatment, environmental protection, aquaculture, chemical, food and other industrial processes.

To help us select the correct configuration, please provide:

• Parameter(s) to monitor and measuring range
• Medium and installation point
• Whether sensors are required
• Output and relay requirements
• Power supply (AC or DC)
• Installation environment
• Quantity

Send your requirements to info@asmik.com or contact us via WhatsApp at +86 13325716921.
